FN1010, Weighing/Force Sensor - Load pin - TE Load Pin

The FN1010 Load Pin is engineered to provide a flexible and accurate force measurement solution for a broad array of lifting and handling equipment applications. This load pin is designed with customization in mind, allowing for the adjustment of various dimensions to suit specific requirements, making it ideal for use in monitoring forces within rotating components such as pulleys, and sheaves, and can be directly mounted onto shackles for easy installation.

Central to the FN1010's functionality is its advanced sensing technology, which includes thin film strain gauges configured in a Wheatstone bridge circuit to ensure precise and dependable force readings. Each load pin is also equipped with a unique keyed anti-rotation slot to secure its position and prevent unwanted movement once installed.

To cater to environments where durability is key, the FN1010 Load Pin can be configured to be watertight, providing resistance to moisture while remaining unaffected by hydrostatic pressure. Additionally, this model can be equipped with an optional high-level analogue output for simplified data acquisition and analysis.

With a focus on meeting the specific needs and testing conditions of our clients, we offer the option to customize or adapt our sensors. Comprehensive instruction documents are also available upon request, aimed at assisting users in the selection, integration, and effective use of our sensors, complete with useful tips to maximize their performance. This approach ensures that the FN1010 Load Pin is more than just a product; it's a tailored solution designed to enhance the operational efficiency and reliability of your lifting and handling tasks.

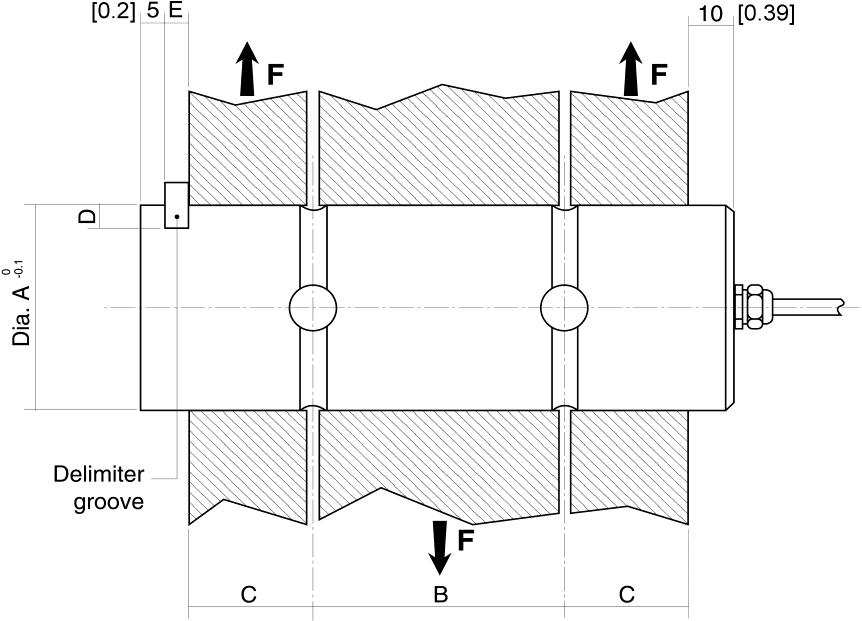

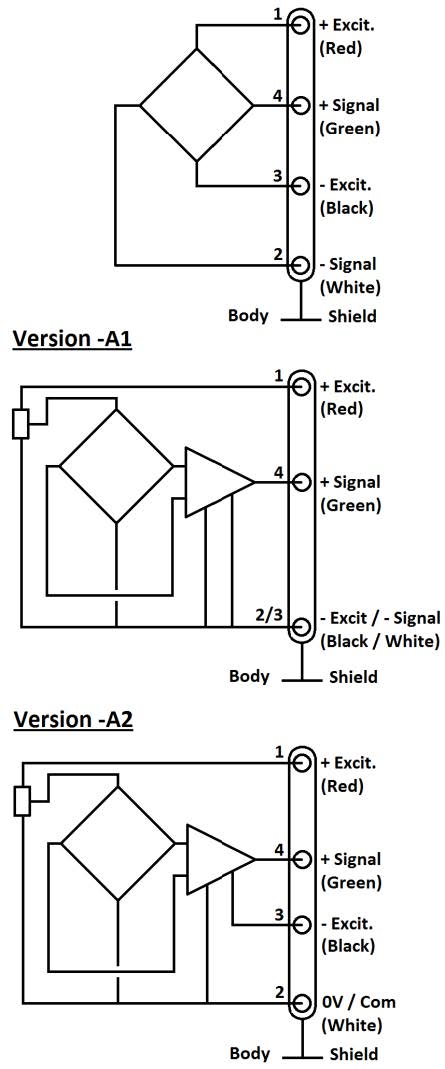

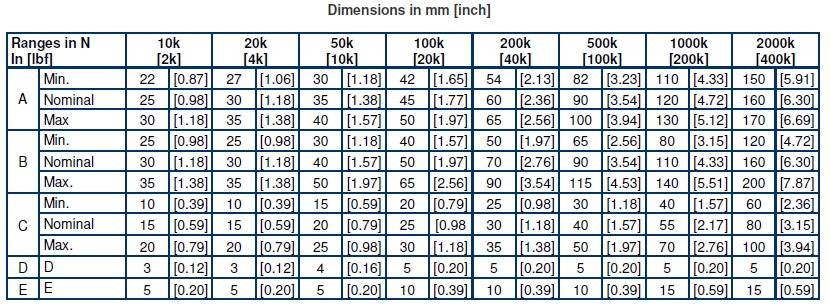

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)
