FN3030, TE Load Cell - S Type
- Optional Rod Ends
- Accuracy: 0.1% F.S.
- Integrated Amplifier optional
- Low Cost
The FN3030 is a versatile S-Beam Load Cell designed to accurately measure both tension and compression forces, with a wide-ranging capacity from 0-50 N to an impressive 0-100,000 N. Its adaptability makes it an ideal choice for various industrial applications, allowing for customization to suit specific needs.
In addition to its versatility, the FN3030 can be further tailored to meet the demands of challenging environments, ensuring reliable performance even in hostile conditions. For applications requiring amplified output signals, an integrated amplifier model is available, facilitating precise and enhanced data acquisition.
With a strong background in sensor design and manufacturing, the FN3030 offers the flexibility to provide custom solutions and adaptations to suit unique testing environments. For those seeking a complete solution, turnkey systems are available, comprising matched components such as the load cell, power supply, amplifier, and digital display. These components are meticulously prepared, calibrated, and ready for immediate integration.
| Type | S-Type |
| Application | Tension & Compression |
| Full Scale | 11.2 lbs |
| 22.5 lbs | |
| 45 lbs | |
| 112 lbs | |
| 225 lbs | |
| 450 lbs | |
| 1124 lbs | |
| 2250 lbs | |
| 4500 lbs | |
| 11200 lbs | |
| 22480 lbs | |
| Output | 20 mV/V |
| Precision | ±0.1 % FS |
| Excitation | 10 V DC |
| IP Rating | IP50 |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
- Process Control Equipment
- Weighing Calibration Tool
- Robotics and Effectors
- Laboratory and Research
| FN3030-A1 | |
| FN3030-A2 |
| EFMX-4M: | mating plug Jaeger 530-801-006 with clamp 530-841-006 for option /SC; /Z04/SC |
| EFMX-4H | mating plug Jaeger 530-804-006 with clamp 530-844-006 for option /SC; /Z35/SC; /Z36/SC |
FN3030 S-type Load Cell Datasheet |
- Same housing for all ranges
- Mechanical stops in option
- Optional:
- Tension Pull Plate
- Load Button
- Integrated amplifier optional
| Type | Pancake |
| Application | Tension & Compression |
| Full Scale | 22 lbs, 45 lbs, 112 lbs, 220 lbs, 450 lbs, 1120 lbs, 2250 lbs, 4500 lbs |
| Output | 15 mV/V |
| Precision | ±0.1 % FS |
| Excitation | 10 V DC |
- High accuracy
- Tension and Compression
- Integrated Mechanical Stops
- Full Wheatstone bridge
- Cable output
- Very low range: 1 N to 5 N (0.2 lbf to 1 lbf)
- S-Beam with mechanical stops
- Very high resolution
| Type | S-Type |
| Application | Tension & Compression |
| Full Scale | 0.22 lbs, 0.45 lbs, 1.1 lbs |
| Output | 1 mV/V, 1.5 mV/V |
| Precision | ±0.1 % FS |
| Excitation | 1 V - 10 V DC |
- Economical
- Tension & Compression
- Accuracy Class: ±0.1% or ±0.2%
- Overload Protection (option)
- Length: 50.0mm - 65.0mm
- Width: 20.0mm - 39.5mm
- Height: 75.0mm - 85.0mm
- Connection: 3m Integral Cable
| Type | S-Type |
| Application | Tension & Compression |
| Full Scale | 4.5 lbs, 11 lbs, 220 lbs, 450 lbs, 1120 lbs, 2250 lbs, 4500 lbs, 11200 lbs |
| Output | 1 mV/V, 2 mV/V |
| Precision | ±0.1 % FS, ±0.2 % FS |
| Excitation | 2 V - 12 V DC |
- Double S-Beam Load Cell
- 10/100 N to 1k/10k N (2/20 lbf to 200/2k lbf)
- High resolution
- For compression and traction uses
- Double Full Scale Range
- Accuracy : 0.1% F.S. for each range
- Integrated Mechanical Stops
- Integrated Amplifier optional
| Type | Multi-Axis |
| # of Axis | 2 (Fx, Mx) |
| Application | Tension & Compression |
| Full Scale | 2.0 lbs, 10 lbs, 20 lbs, 40.5 lbs, 100 lbs, 200 lbs, 400 lbs, 1000 lbs, 2000 lbs |
| Output | 2 mV/V |
| Precision | ±0.1 % FS |

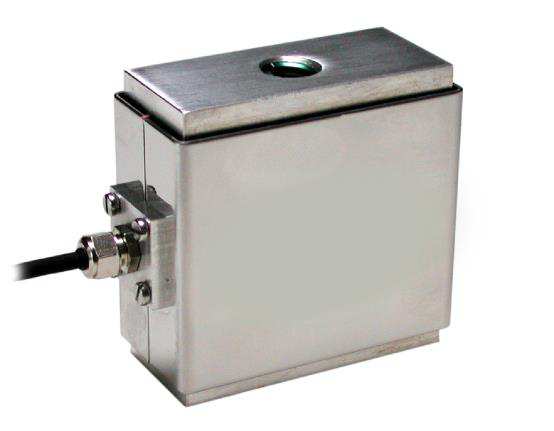

- High Accuracy
- Integrated Amplifier optional
- Cable or connector output
- Ranges from 10 N to 2 000 N [2.25 lbf to 450 lbf]
- S-Beam sensor in tension and compression
- Combined linearity & hysteresis < 0.05% F.S.
| Type | S-Type |
| Application | Tension & Compression |
| Full Scale | 2.2 lbs, 11.2 lbs, 22 lbs, 45 lbs, 112 lbs, 225 lbs, 450 lbs |
| Output | 20 mV/V |
| Precision | ±0.05 % FS |
| Excitation | 10 V AC |
