CD1050, TE Dynamic Torquemeter - Rotary Torque
- Range from ±5 to ±7,000 Nm (±4 to ±5,600 lbf.ft)
- Square Male Couplings
- Stainless Steel
- Cable Gland or Connector Output
- Slip ring measurement peaking
- High Stiffness
- Other square size available on custom design
- High Level Output Model with
- Integrated Amplifier
The CD1050 Series rotary torque sensor is specifically engineered for precision torque measurement on rotating shafts, making it an essential tool for a variety of industrial applications. Its robust stainless steel construction makes the sensor ideally suited for challenging conditions, providing long-term durability and resistance to corrosive elements.
Equipped with metallic strain gauges configured in a Wheatstone bridge circuit, the CD1050 delivers exceptional temperature stability, ensuring accurate readings across a wide range of operating conditions. The sensor's range spans from ±5 Nm to ±7,000 Nm (±4 to ±5,600 lbf.ft), accommodating a broad spectrum of torque measurement requirements.
For applications necessitating a high-level output, a version of the CD1050 with an integrated amplifier is available, enhancing signal quality for improved measurement precision. Additionally, the CD1095 model offers a key-shafted interface option, providing flexibility for integration into diverse mechanical setups.
Featuring square male couplings for secure attachment and a choice of cable gland or connector output for versatile connectivity, the CD1050 Series is a reliable and efficient solution for rotary torque measurements in industrial and OEM applications.

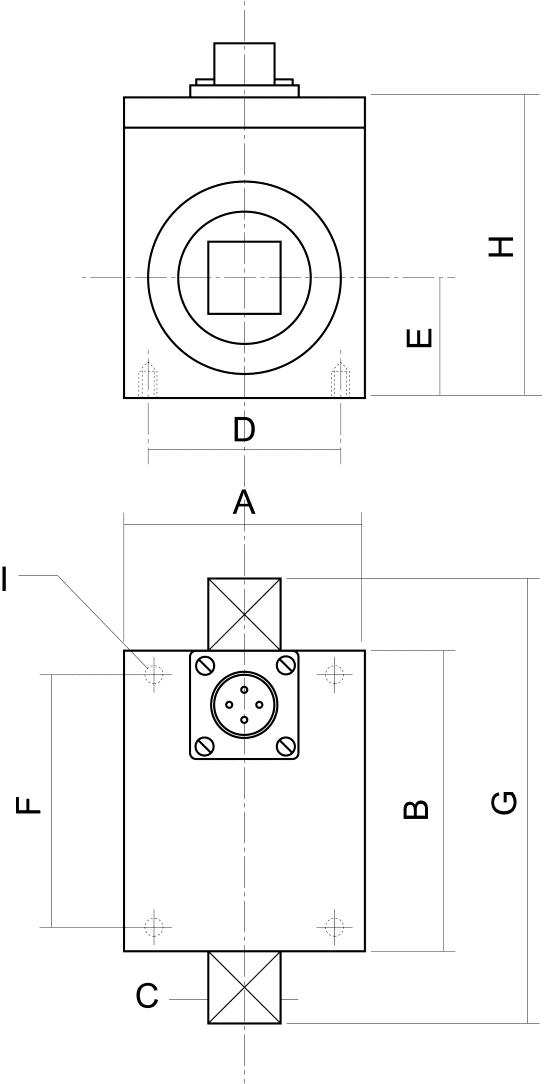

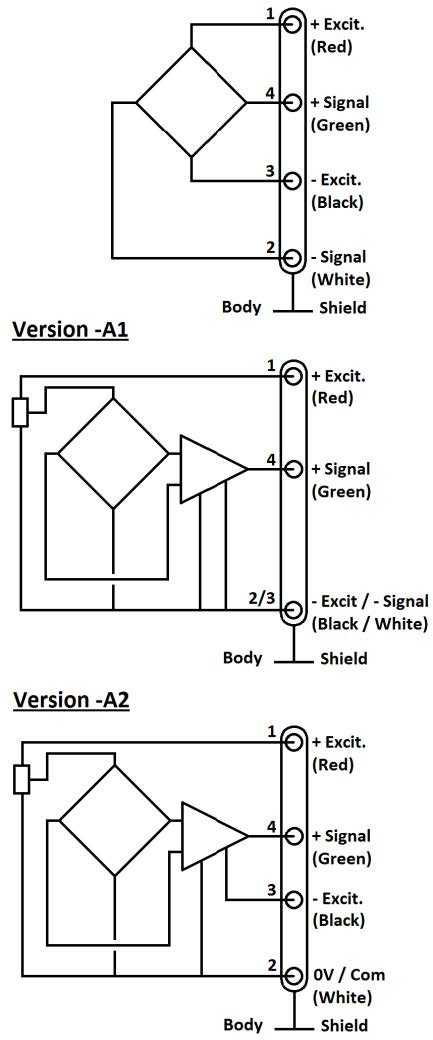

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)
Dimensions in mm [inch]
| Type | Rotary |
| Full Scale | 5 Nm |
| 10 Nm | |
| 20 Nm | |
| 50 Nm | |
| 100 Nm | |
| 150 Nm | |
| 200 Nm | |
| 300 Nm | |
| 500 Nm | |
| 750 Nm | |
| 1000 Nm | |
| 2000 Nm | |
| 3000 Nm | |
| 4000 Nm | |
| 5000 Nm | |
| 7000 Nm | |
| Output | 2 mV/V |
| Precision | ±0.25 % FS |
| Excitation | 1V - 10 V DC |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
- Dynamic applications
- Process control equipment
- Test and Measurement
- Robotics and effectors
- Laboratory and Research
| CD1050-A1 | |
| CD1050-A2 | |
| CD1050 |
CD1050 Datasheet Datasheet |
- Range from ±5 to ±2,500 Nm (±4 to 2,000 lbf.ft)
- Keyed Shaft couplings
- Stainless Steel
- Cable Gland or Connector Output
- Slip ring measurement peaking
- High Stiffness
- Protection IP50
- High Level Output Model with Integrated Amplifier
| Type | Rotary |
| Full Scale | 5 Nm, 10 Nm, 20 Nm, 50 Nm, 75 Nm, 100 Nm, 150 Nm, 200 Nm, 300 Nm, 500 Nm, 750 Nm, 1000 Nm, 1700 Nm, 2500 Nm |
| Output | 2 mV/V |
| Precision | ±0.25 % FS |
| Excitation | 1V - 10 V DC, 10 V - 30 V DC, 15 V DC |
| Min Temperature | -20 °C |
- Range from ±160 to ±10,000 Nm (±1±8,000 lbf.ft)
- For Static Applications
- High Stiffness
- Collar mechanical fittings
- Stainless Steel or Aluminum
- Gland or Connector Output
- Built In Amplifier per Request
| Type | Reaction |
| Full Scale | 160 Nm, 300 Nm, 600 Nm, 1200 Nm, 2400 Nm, 3500 Nm, 4800 Nm, 7000 Nm, 10000 Nm |
| Output | 2 mV/V |
| Precision | ±0.25 % FS |
| Excitation | 1V - 10 V DC, 10 V - 30 V DC, 15 V DC |
| Min Temperature | -20 °C |
- Range from ±0.05 to ±2 Nm (±0.04 to ±1.5 lbf.ft)
- Keyed Shaft couplings
- Integrated Mechanical Stops
- Aluminum shaft
- Cable Gland or Connector Output
- Over torque protection
- Integrated Mechanical Stops
- High Level Output Model with Integrated Amplifier
| Type | Rotary |
| Full Scale | 0.05 Nm, 0.1 Nm, 0.35 Nm, 0.5 Nm, 1 Nm, 2 Nm |
| Precision | ±0.25 % FS |
| Excitation | 1V - 10 V DC, 10 V - 30 V DC |
| IP Rating | IP50 |
| Min Temperature | -20 °C |
- Square male coupling
- Range from ±5 to ±7,000 Nm (±4 to ±5,600 lbf. ft)
- Stainless Steel
- Cable Gland or Connector Output
- Built In Amplifier per Request
- Suited for static applications
- Square male coupling
- High Level Output Model with Integrated Amplifier
| Type | Reaction |
| Output | 2 mV/V |
| Precision | ±0.25 % FS |
| Excitation | 1V - 10 V DC, 10 V - 30 V DC, 15 V DC |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
- Range from ±5 to ±2,500 Nm (±4 to ±2,000 lbf.ft)
- Keyed Shaft Mechanical Connection
- Stainless Steel
- Cable Gland or Connector Output
- Accuracy ≤0.25% F.S.
- For Static Applications
- Keyed Shaft Mechanical Connection
- High Level Output Model with Integrated Amplifier
| Type | Reaction |
| Output | 2 mV/V |
| Precision | ±0.25 % FS |
| Excitation | 1V - 10 V DC, 10 V - 30 V DC, 15 V DC |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
