9146-R, NetScanner RTD/TC/Volt Media Scanners - Discontinued

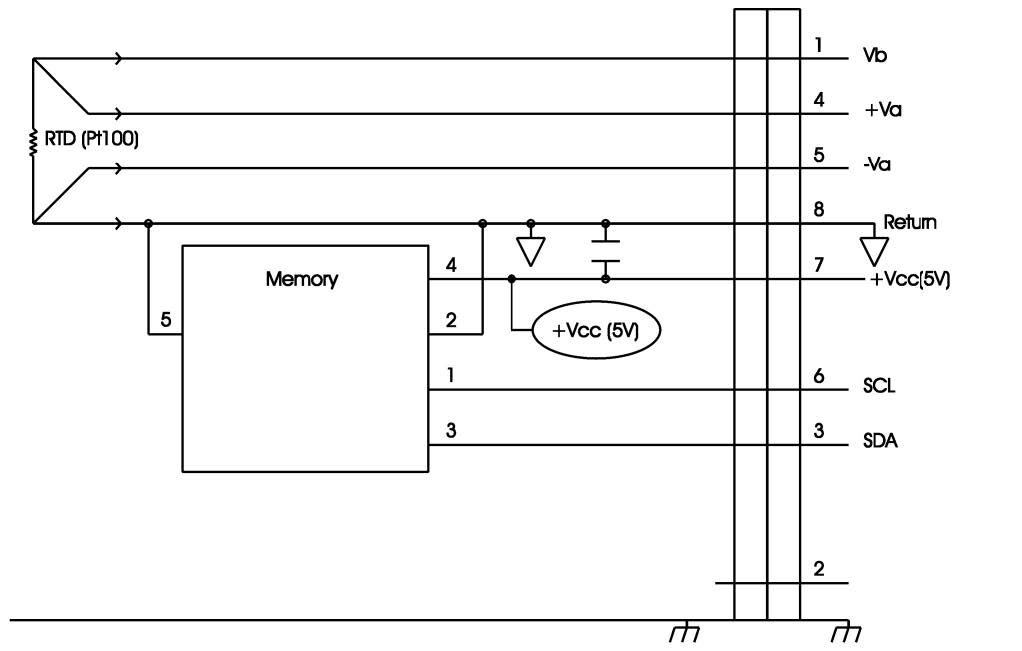

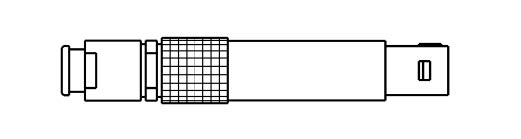

The 9146-R NetScanner is a sophisticated instrument engineered to deliver high-precision temperature and voltage measurements. It incorporates 16 LEMO Circular Sockets, offering a robust connection for thermocouples, RTDs, and voltage sensors. Its innovative Smart Connectors™ technology provides automatic sensor identification, hookup verification, and customized calibration coefficients for each channel, enhancing measurement accuracy and reliability.

The 9146-R can handle up to 32 voltage measurements per unit, making it versatile for a wide range of applications. Its rugged, splash-proof enclosure and capability to withstand extreme conditions such as 30g of force and 160dB of noise make it ideal for use in high-demand environments like turbine and compressor test cells. The device's networkability and compatibility with common power, software, and communication protocols of the NetScanner family offer a seamless integration into existing systems. With onboard signal conditioning, analog-to-digital conversion, and microprocessor compensation, the 9146-R ensures high accuracy data, with a host PC interface achievable via Ethernet, supporting data throughput rates up to 33 Hz in Engineering Units or 100 Hz in raw count data format.

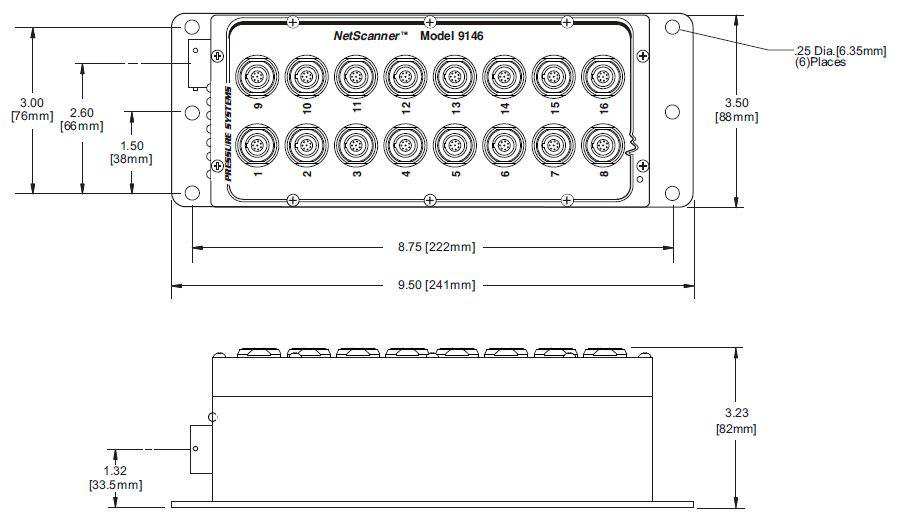

                                                    Dimensions 9146-R
