EGAXT, Miniature Uniaxial Accelerometer
- Miniature, Light Weight
- DC to 3000Hz Frequency Response
- Full Bridge Design
- Linearity <1%
- 10,000g Shock Protection
- 2-15Vdc Excitation
- <3% Transverse Sensitivity
- DC Response, Critically Damped
- ±10g to ±2500g Dynamic Range
- Miniature Form Factor
- Fluid Damped, Over-Range Stops
- Temperature Compensated
- -40°C to +120°C Operating Range
The Model EGAXT series represents a leap forward in vibration sensing technology, offering a compact solution for a wide range of test and measurement applications. These accelerometers are specifically engineered with fluid damping and mechanical over-range stops, ensuring exceptional shock survivability and reliable performance under extreme conditions. Available in dynamic ranges from ±10g to ±2500g, the EGAXT accelerometers accommodate various testing needs, from subtle vibrations to severe impacts. Their frequency response extends up to 3000Hz, depending on the range, making them suitable for both low and high-frequency measurements. The series features a full bridge output configuration and inline temperature compensation, guaranteeing accurate data across the entire operating temperature range of -40°C to +120°C. Designed for either epoxy or screw mounting, these sensors offer flexibility in installation, with triaxial mounting blocks available for comprehensive multi-axis measurement setups.

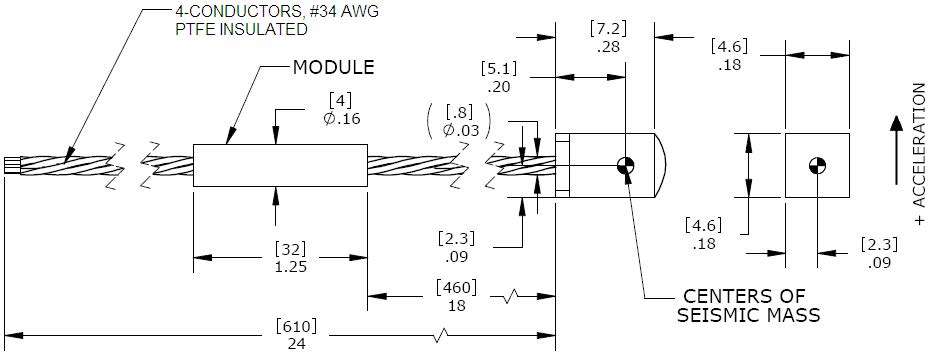

Dimensions, Model EGAXT
Dimensions, Model EGAXT-F

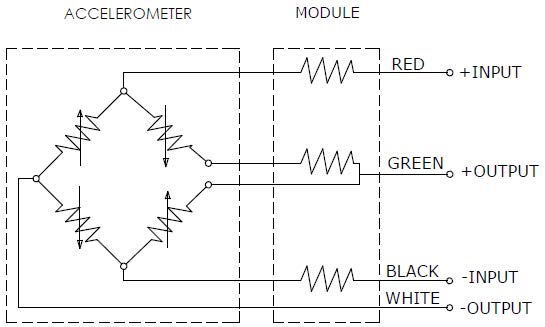

Schematic, for both EGAXT and EGAXT-F
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 10 g |
| 25 g | |
| 50 g | |
| 100 g | |
| 250 g | |
| 500 g | |
| 1000 g | |
| 2500 g | |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
- General Purpose T&M Applications
- Vibration & Shock Monitoring
- Flight Testing
- Transient Drop Testing
- Static & Dynamic Measurements
| EGAXT | |
| EGAXT-F |
EGAXT Datasheet Datasheet |
- DC Response, Critically Damped
- ±5g to ±10,000g Dynamic Range
- Rugged Design, Integral Strain Relief
- Fluid Damped, Over-Range Stops
- Temperature Compensated
- -40°C to +100°C Operating Range
- Full Bridge Design
- Linearity <1%
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 5 g, 10 g, 25 g, 50 g, 100 g, 250 g, 500 g, 1000 g, 2500 g, 5000 g, 10000 g |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
- DC Response, Critically Damped
- ±5g to ±10,000g Dynamic Range
- Rugged Design, Integral Strain Relief
- Fluid Damped, Over-Range Stops
- Temperature Compensated
- -40°C to +100°C Operating Range
- Full Bridge Design
- Linearity <1%
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 50 g, 100 g, 250 g, 500 g, 1000 g, 2500 g, 5000 g, 10000 g |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
- MEMS technology
- Same power supply requirements as strain gage sensors
- DC response
- Differential output
- 2.5 mV/g, 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g and 100 mV/g sensitivity available
- Available in ranges of 5g, 10g, 25g, 50g, 100g and 200g
- 0 to 600 Hz frequency range (3dB)
- 4-pin M4.5 x 0.35 radial connector
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 5 g, 10 g, 25 g, 50 g, 100 g, 200 g |
| Output | 2.5 mV/g, 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g |
| Excitation | 3 - 11 V DC |
| Material | Titanium |
- Miniature Triaxial DC Accelerometer
- Critically Damped, Over-Range Stops
- ±10g to ±2500g Dynamic Range
- Temperature Compensated
- -40°C to +120°C Operating Range
- 10,000g Shock Protection
- Individual Axes Sensing Elements
- DC to 2000Hz Frequency Response
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g, 1000 g, 2500 g |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
- MEMS DC Triaxial Accelerometer
- Ultra-Stable, DC to 2000Hz Response
- Exceptional Thermal Performance
- <2.0% Total Error Band
- <0.1% Linearity Accuracy
- Anodized Aluminum Housing
- ±2g to ±200g Dynamic Range
- Three Independent Circuits
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 2 g, 5 g, 10 g, 30 g, 50 g, 100 g, 200 g |
| Excitation | 4 - 30 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 115 °C |
