EGCS-D0 & EGCS-D1S, Screw/stud mount Uniaxial Accelerators
- DC Response, Critically Damped
- ±5g to ±10,000g Dynamic Range
- Rugged Design, Integral Strain Relief
- Fluid Damped, Over-Range Stops
- Temperature Compensated
- -40°C to +100°C Operating Range
- Full Bridge Design
- Linearity <1%
- 10,000g Shock Protection
- 2-15Vdc Excitation <3% Transverse Sensitivity
The EGCS-D0 and EGCS-D1S series accelerometers embody resilience and precision for harsh environments, leveraging critically fluid-damped mechanisms to ensure accurate measurements under extreme conditions. These sensors offer a remarkable dynamic range, capable of capturing subtle to severe vibrations with ranges from ±5g to an impressive ±10,000g. Their design features mechanical over-range stops, providing exceptional shock survivability, and a full bridge output configuration for reliable signal integrity. With a frequency response up to 5000Hz, dependent on the range, these accelerometers are suited for a broad spectrum of applications, from general testing and measurement to specific challenges like road vehicle testing and engine diagnostics. The series is housed in a rugged stainless steel casing, ensuring durability, and offers integral strain relief for long-term reliability. Available in both screw-mounted flange (EGCS-D0) and stud mount (EGCS-D1S) configurations, these sensors accommodate various installation requirements and are complemented by optional triaxial mounting blocks for multi-axis setups.

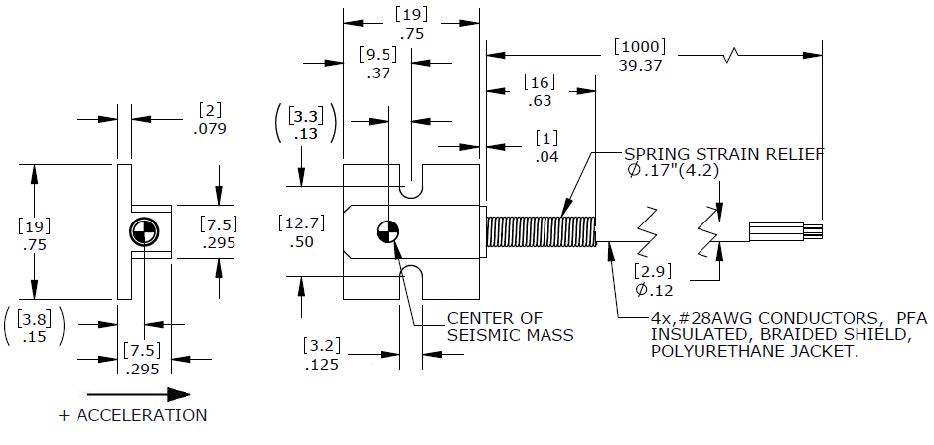

Dimensions, Model EGCS-D0

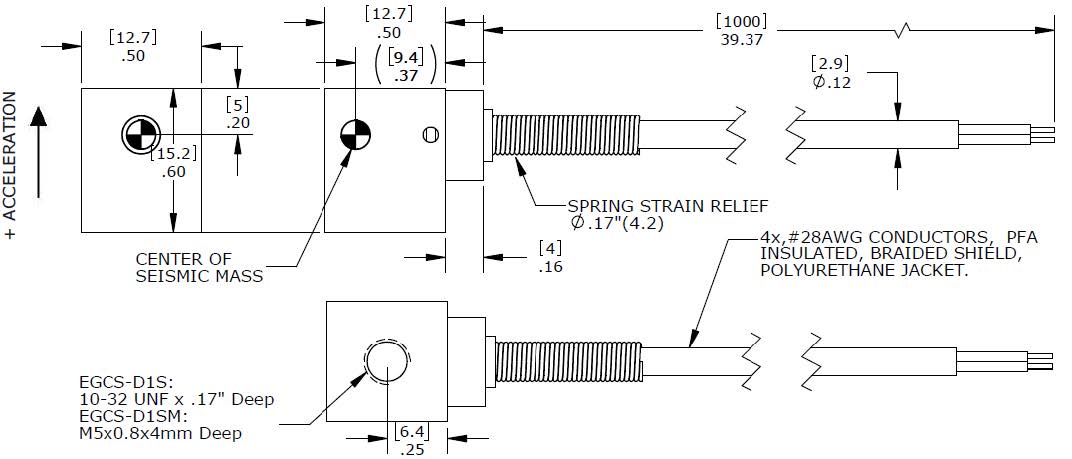

Dimensions, Model EGCS-D1S

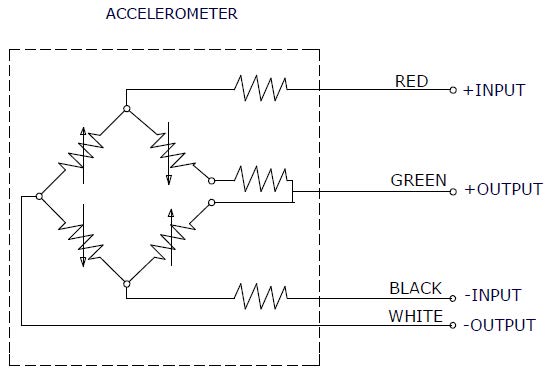

Schematic, for both EGCS-D0 and EGCS-D1S
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 5 g |
| 10 g | |
| 25 g | |
| 50 g | |
| 100 g | |
| 250 g | |
| 500 g | |
| 1000 g | |
| 2500 g | |
| 5000 g | |
| 10000 g | |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
- General Purpose T&M Applications
- Vibration & Shock Monitoring
- Road Vehicle Testing
- Transient Drop Testing
- Static & Dynamic Measurements
- Engine Testing
| EGCS-D0 | Dimensions (mm): 19.0 x 19.0 x 7.6 |
| EGCS-D1S | Dimensions (mm): 12.7 x 12.7 x 15.2 |
| EGCS-D5 | Dimensions (mm): 14.2 x 12.7 x 5.6 |
| EGCS-D0-25 | Model EGCS-D0, 25g range |
| EGCS-D0-50 | Model EGCS-D0, 50g range |
| EGCS-D0-25-/V05/L5M | Model EGCS-D0, 25g range, 5 Vdc excitation, 5 meters cable length |
| EGCS-D0-10-/V10/L5M | Model EGCS-D0, 10g range, 10 Vdc excitation, 5 meters cable length |
| EGCS-D1SM-5-/V2.5/C | Model EGCS-D1SM, 5g range, calibrated at 2.5Vdc excitation, standard 1 meter cable length |
EGCS-D0 & EGCS-D1S Datasheet Datasheet |
- Miniature, Light Weight
- DC to 3000Hz Frequency Response
- Full Bridge Design
- Linearity <1%
- 10,000g Shock Protection
- 2-15Vdc Excitation
- <3% Transverse Sensitivity
- DC Response, Critically Damped
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g, 1000 g, 2500 g |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
- DC Response, Critically Damped
- ±5g to ±10,000g Dynamic Range
- Rugged Design, Integral Strain Relief
- Fluid Damped, Over-Range Stops
- Temperature Compensated
- -40°C to +100°C Operating Range
- Full Bridge Design
- Linearity <1%
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 50 g, 100 g, 250 g, 500 g, 1000 g, 2500 g, 5000 g, 10000 g |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
- MEMS technology
- Same power supply requirements as strain gage sensors
- DC response
- Differential output
- 2.5 mV/g, 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g and 100 mV/g sensitivity available
- Available in ranges of 5g, 10g, 25g, 50g, 100g and 200g
- 0 to 600 Hz frequency range (3dB)
- 4-pin M4.5 x 0.35 radial connector
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 5 g, 10 g, 25 g, 50 g, 100 g, 200 g |
| Output | 2.5 mV/g, 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g |
| Excitation | 3 - 11 V DC |
| Material | Titanium |

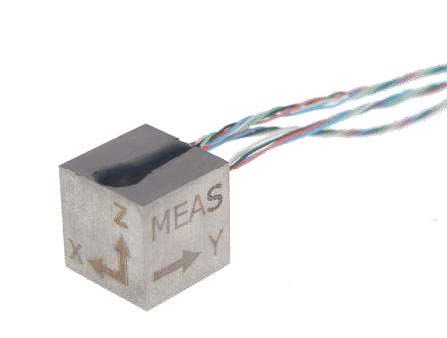

- Miniature Triaxial DC Accelerometer
- Critically Damped, Over-Range Stops
- ±10g to ±2500g Dynamic Range
- Temperature Compensated
- -40°C to +120°C Operating Range
- 10,000g Shock Protection
- Individual Axes Sensing Elements
- DC to 2000Hz Frequency Response
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g, 1000 g, 2500 g |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
- MEMS DC Triaxial Accelerometer
- Ultra-Stable, DC to 2000Hz Response
- Exceptional Thermal Performance
- <2.0% Total Error Band
- <0.1% Linearity Accuracy
- Anodized Aluminum Housing
- ±2g to ±200g Dynamic Range
- Three Independent Circuits
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 2 g, 5 g, 10 g, 30 g, 50 g, 100 g, 200 g |
| Excitation | 4 - 30 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 115 °C |
