4610, Screw Mount Uniaxial Accelerometer
- ±2g to ±200g Dynamic Range
- Self-test Enabled
- Amplified Output, Signal Conditioned
- Gas-Damped MEMS Sensors
- Integral Strain Relief
- 4 to 30Vdc Excitation Voltage
- 6000g Shock Protection
The Model 4610 MEMS DC accelerometer sets a new standard in vibration and motion sensing with its ultra-stable, DC response and outstanding thermal performance across a broad operating temperature range of -55°C to +125°C. Available in dynamic ranges from ±2g to ±200g, this accelerometer ensures precise measurements with a total error band of less than 2.0% and linearity accuracy below 0.1%. It features a gas-damped variable capacitance MEMS sensing element, providing superior shock protection up to 6000g. Designed to operate with 4 to 30Vdc excitation voltage, the Model 4610 also includes a self-test functionality for added reliability. With its amplified, signal-conditioned output and integral strain relief, this accelerometer is ideally suited for applications in flight testing, structural analysis, test and instrumentation, and transportation, among others.

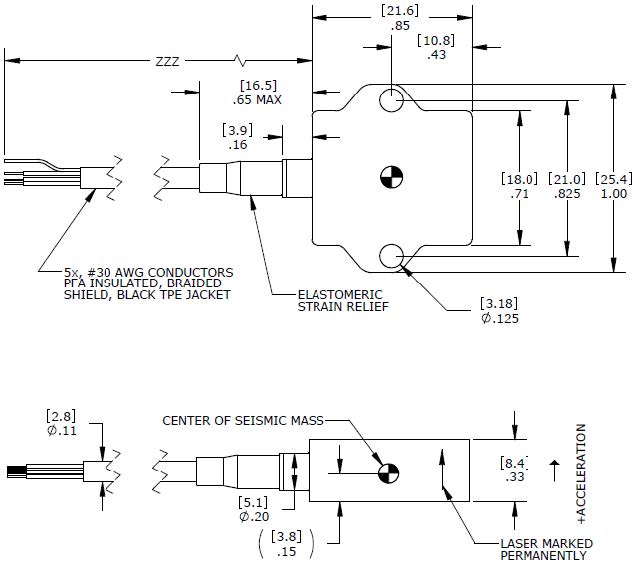

DIMENSIONS

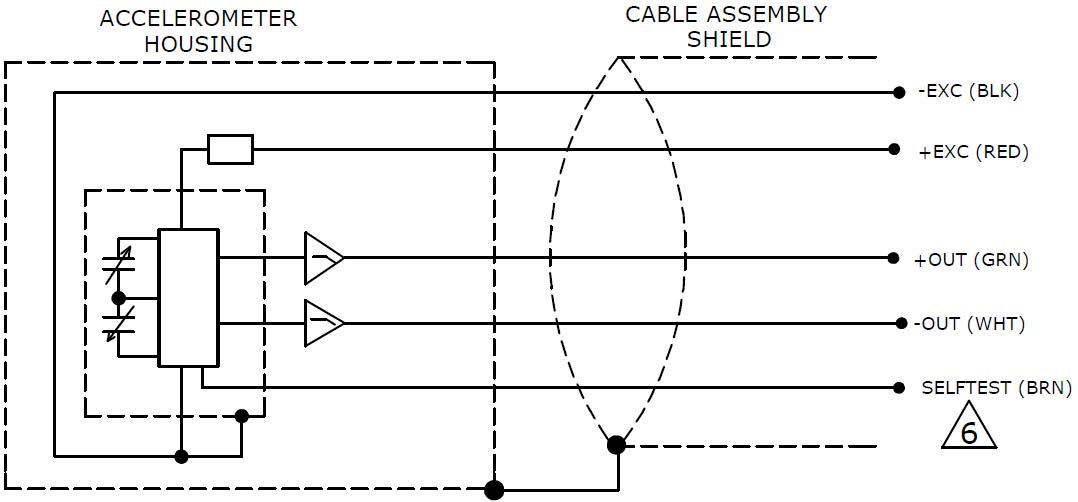

SCHEMATIC
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 2 g |
| 5 g | |
| 10 g | |
| 30 g | |
| 50 g | |
| 100 g | |
| 200 g | |
| Excitation | 4 - 30 V DC |
| Min Temperature | -55 °C |
| Max Temperature | 125 °C |
- Flight Testing
- Flutter and Nacelle Vibrations
- Structural Testing
- Test and Instrumentation
- Performance Testing
- Transportation
| 4610 | |
| 4610-002-240-D | Model 4610, 2g range, 240inch (20ft) cable length |
| 4610-010-120-D | Model 4610, 10g range, 120inch (10ft) cable length |
