68CM1, Miniature Triaxial Accelerometer
- Triaxial MEMS DC Accelerometer for ATD
- WorldSID Approved
- Excellent Accuracy in Crash Testing
- Compliant to SAE J211/J2570
- Compliant to ISO 6487
- ±50g to ±2000g Dynamic Range
- Mechanical Over Range Stops
- <1% Transverse Sensitivity Option
- 0-4000Hz Bandwidth, All Axes
- Standard <25mV ZMO
- Linearity <1%
- 10,000g Shock Protection
- 2-10Vdc Excitation
- Optimum Gas Damping
- <10sec Warm-Up Time
Model 68CM1 Triaxial Accelerometer - Specifically crafted for ATD dummy instrumentation, the Model 68CM1 sets a new benchmark in crash test analysis with its WorldSID approval and exceptional performance across a dynamic range of ±50g to ±2000g. This accelerometer excels in providing best-in-class frequency response, linearity, transverse sensitivity, and minimal long-term drift, thanks to its advanced piezoresistive sensor technology. Its full-bridge configuration with a nominal 4000Ω impedance ensures quick warm-up times and stable performance, distinguishing it from other models. Compliant with both SAE J211/J2570 and ISO 6487 standards, the Model 68CM1 features less than 1% transverse sensitivity, making it a unique choice for accurate triaxial crash acceleration measurement. Encased in a compact stainless steel housing, it offers exceptional shock survivability and a flat frequency response of up to 4000Hz across all axes. With features like optimum gas damping and a fast warm-up time of under 10 seconds, this accelerometer is ideal for use in WorldSID dummies, ejection seat testing, and various automotive safety testing applications, ensuring precise and reliable data for critical safety evaluations.

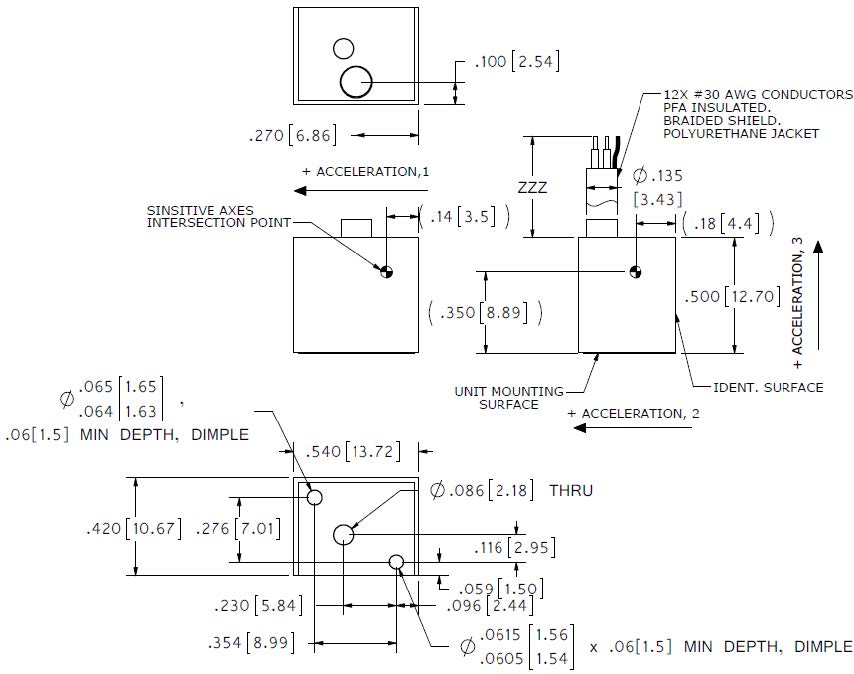

Dimensions

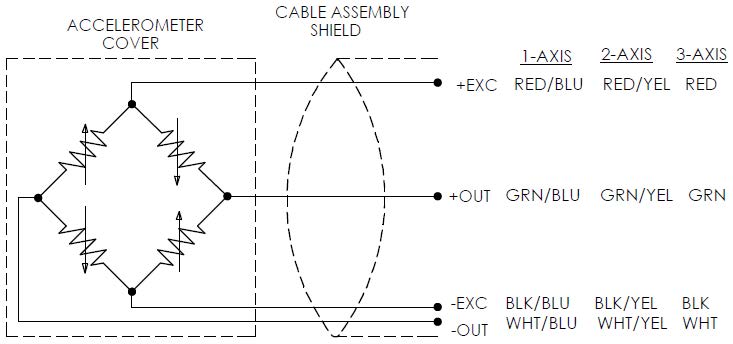

Schematic
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 50 g |
| 100 g | |
| 200 g | |
| 500 g | |
| 2000 g | |
| Excitation | 2 - 10 V DC |
| Min Temperature | -20 °C |
| Max Temperature | 85 °C |
- World SID Dummy
- Anthropomorphic Dummy Instrumentation
- Ejection Seat Testing
- Auto Safety Testing Applications
- Shock and Impact Testing
- Transient Drop Testing
68CM1 Accelerometer Datasheet Datasheet |
- DC Response, Critically Damped (0.7 Ratio)
- ±25g to ±2000g Dynamic Range
- Rugged, Fluid-Damped Design
- Temperature Compensated
- 2–10 Vdc Excitation
- Full Bridge Output Configuration
- Anodized Aluminum Housing
- <3% Transverse Sensitivity (<1% optional)
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 25 g, 100 g, 250 g, 500 g, 1000 g, 2000 g |
| Excitation | 2 - 10 V DC |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
- Triaxial MEMS Crash Test Accelerometer
- Best in Class Piezoresistive MEMS Sensor
- ±50g to ±2000g Dynamic Ranges
- Compliant to SAE J211/J2570
- Compliant to ISO-6487
- Ideal for Crush Zone and Side Impact Installations
- Low Profile, Adhesive Mount
- Minimal Warm-Up Drift
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 50 g, 100 g, 200 g, 500 g, 2000 g |
| Excitation | 2 - 10 V DC |
| Min Temperature | -55 °C |
| Max Temperature | 125 °C |
- Seat Pad Accelerometer
- MEMS, Triaxial Sensors
- DC Response
- Accurate Temp Compensation
- ISO 10326-1 Configuration
- Three Independent Circuits
- Low Current Consumption
- Ranges: ±25g
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 25 g |
| Min Temperature | -20 °C |
| Max Temperature | 85 °C |
- Miniature Triaxial DC Accelerometer
- Critically Damped, Over-Range Stops
- ±10g to ±2500g Dynamic Range
- Temperature Compensated
- -40°C to +120°C Operating Range
- 10,000g Shock Protection
- Individual Axes Sensing Elements
- DC to 2000Hz Frequency Response
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g, 1000 g, 2500 g |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
