4033, Screw Mount Low Cost Accelerators
- DC Response, Silicon MEMS
- Triaxial Configuration
- Low Cost, Great Value
- ±2g & ±6g Measurement Range
- Rugged Aluminum Housing and Strain Relief
- 5-30Vdc Excitation Voltage
- Environmentally Sealed
- Low Pass Filtered Output
- Capacitive Silicon MEMS Element
- Integral #24 AWG Cable
- Self-Test Enabled
Model 4033 Accelerometer offers precision low-frequency vibration monitoring with its low noise, triaxial DC response capability. Available in ±2g & ±6g measurement ranges and a nominal 0-200Hz bandwidth, this accelerometer is designed for critical measurement applications requiring high resolution and long-term stability. The capacitive silicon MEMS sensing element ensures accurate and reliable data capture. Packaged in a rugged anodized aluminum housing with integral strain relief, it is built to withstand harsh conditions while maintaining performance integrity. Usable over a wide operating temperature range of -40°C to +85°C and featuring a 5-30Vdc excitation voltage, this model is environmentally sealed and includes a low pass-filtered output. With a self-test feature for added reliability, the Model 4033 is ideal for applications such as tilt and inclination measurement, motion measurements, structural monitoring, biomechanics testing, and robotics measurements, offering great value without compromising on quality.

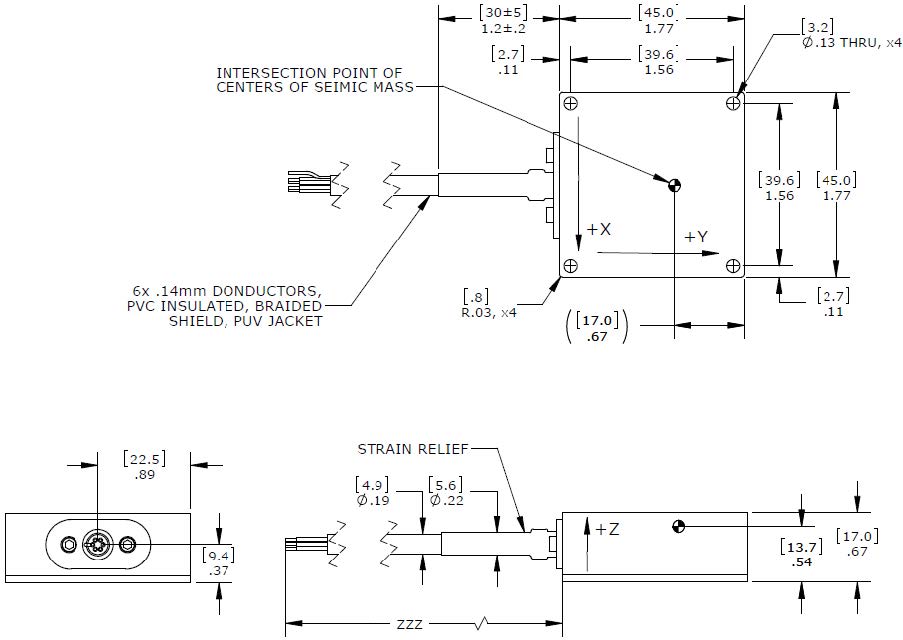

DIMENSIONS

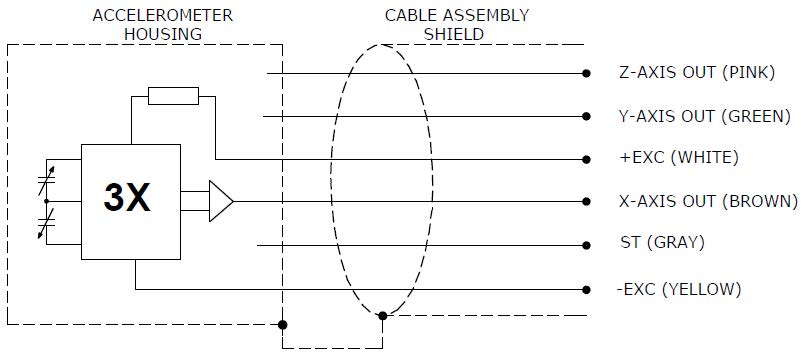

SCHEMATIC
| Type | DC Response |
| # of Axis | 2 |
| 3 | |
| Full Scale | 2 g |
| 6 g | |
| Excitation | 5 - 30 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
- Low-Frequency Vibration Monitoring
- Tilt & Inclination Measurement
- Motion Measurements
- Structural Monitoring
- Biomechanics Testing
- Robotics Measurements
4033 Accelerometer Datasheet Datasheet |
