606M1, Seat Pad Accelerators
- Seat Pad Accelerometer
- MEMS, Triaxial Sensors
- DC Response
- Accurate Temp Compensation
- ISO 10326-1 Configuration
- Three Independent Circuits
- Low Current Consumption
- Ranges: ±25g
- Gas Damped, DC Response
- High Over-Range Protection
- Low Transverse Sensitivity
The Model 606M1 Accelerometer is a state-of-the-art MEMS triaxial seat pad accelerometer, expertly crafted to measure both static and dynamic responses for the precise characterization of whole body vibration, adhering to the requirements of ISO 2631-1 and ISO 8041. Its silicon MEMS sensors provide a DC response, essential for accurately determining velocity and displacement from raw acceleration data. This model stands out with its integral temperature compensation, ensuring stable outputs across a broad operating temperature range. Equipped with an on-board voltage regulation circuit, the 606M1 is compatible with power supplies ranging from 8 to 32Vdc, making it a versatile tool for comprehensive vibration analysis. Its adherence to the ISO 10326-1 configuration further underscores its suitability for a wide array of applications requiring meticulous vibration assessment.

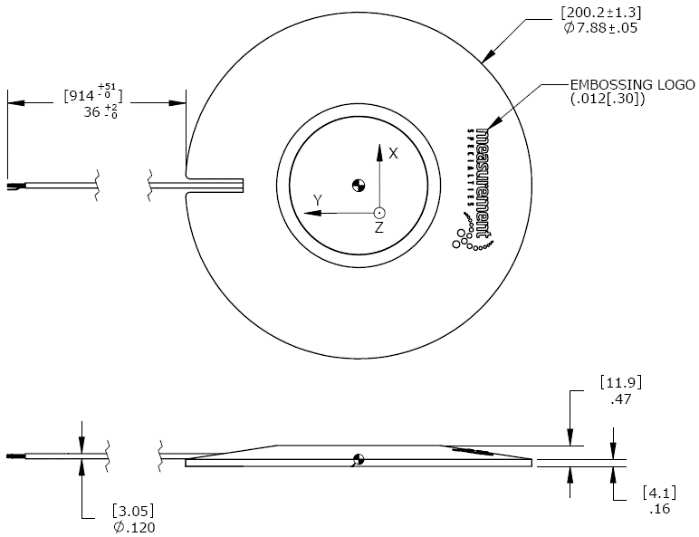

DIMENSIONS
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 25 g |
| Min Temperature | -20 °C |
| Max Temperature | 85 °C |
606M1 Accelerometer Datasheet Datasheet |
- MEMS Technology
- Embedded Microcontroller
- Acceleration and Gyro response
- Variable Capacitance MEMS chip ±14G range(5346A1) or ±200G(5346A2) with USB interface
- Triaxial MEMS accelerometer- model 7546A1/A2
- Frequency range of accelerometer: 0 Hz (DC) to 1,100 Hz
- Triaxial Gyroscope
- Frequency range of gyroscope is 0 to 250 Hz.
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 15 g, 200 g |
| Output | USB |
| Excitation | 5 V DC |
| Material | Titanium |
- USB/MEMS technology
- Embedded Microcontroller
- Triaxial MEMS accelerometer- model 7546A1/A2
- Variable capacitance MEMS chip: 16g range (5340B1) or 200g range (5340B2)
- Can be used in harsh environments from test tracks to field monitoring
- 0 to 1,100 Hz frequency range (3dB)
- Max Shock: 10000g
- Temperature Range: -40 to +85°C
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 15 g, 200 g |
| Output | USB |
| Excitation | 5 V DC |
| Material | Titanium |
- DC Response, Critically Damped (0.7 Ratio)
- ±25g to ±2000g Dynamic Range
- Rugged, Fluid-Damped Design
- Temperature Compensated
- 2–10 Vdc Excitation
- Full Bridge Output Configuration
- Anodized Aluminum Housing
- <3% Transverse Sensitivity (<1% optional)
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 25 g, 100 g, 250 g, 500 g, 1000 g, 2000 g |
| Excitation | 2 - 10 V DC |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
- Triaxial MEMS DC Accelerometer
- Smart Digital Sensor with Onboard Processing
- ±2g to ±15g Measurement Ranges
- RS485 Interface, User Configurable
- Temperature Output Included
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 2 g, 5 g, 10 g, 15 g |
| Excitation | 8 - 36 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
- DC Response, Silicon MEMS
- Triaxial Configuration
- Low Cost, Great Value
- ±2g & ±6g Measurement Range
- Rugged Aluminum Housing and Strain Relief
- 5-30Vdc Excitation Voltage
- Environmentally Sealed
- Low Pass Filtered Output
| Type | DC Response |
| # of Axis | 2, 3 |
| Full Scale | 2 g, 6 g |
| Excitation | 5 - 30 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
