4332M3, Screw Mount Triaxial Accelerators
- 4-20mA Signal Output
- MEMS DC Triaxial Accelerometer
- IP68 Protection
- Low Noise, High Resolution
- Stainless Steel Housing
- Corrosion Resistant
- Three Independent Circuits
- ±2g to ±20g Dynamic Range
- DC Response
- Temperature Compensation
The Model 4332M3 Accelerometer is engineered for precision in monitoring and measurement tasks, featuring a MEMS DC triaxial sensor with both static and dynamic capabilities. This device stands out with its 4-20mA output, delivering high resolution and low noise performance across a dynamic range of ±2g to ±20g. Housed in a robust stainless steel casing, the 4332M3 is designed to resist corrosion, making it suitable for harsh environments. Its integral cable and certification for IP68 protection ensure durability and reliability up to 40m underwater, complemented by an operational temperature range of -40°C to +85°C. With three independent circuits and temperature compensation, this accelerometer is an ideal choice for applications requiring precise, dependable data collection, such as transportation measurements, structural monitoring, and submersible measurements in challenging conditions.

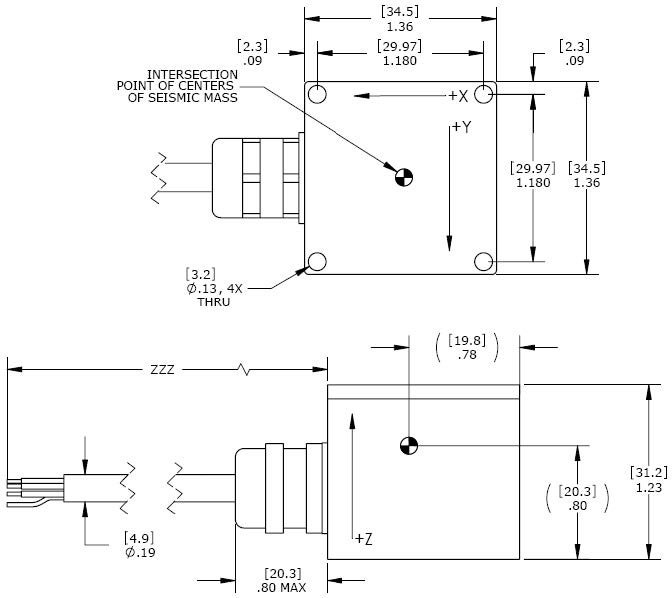

DIMENSIONS
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 2 g |
| 5 g | |
| 10 g | |
| 20 g | |
| Min Temperature | -40 °C |
| Max Temperature | 115 °C |
- Transportation Measurements
- Structural Monitoring
- Bridge & Tunnel Monitoring
- Low-Frequency Applications
- Submersible Measurements
| 4332M3-002 | |
| 4332M3-005 | |
| 4332M3-010 | |
| 4332M3-020 |
4332M3 Datasheet Datasheet |
