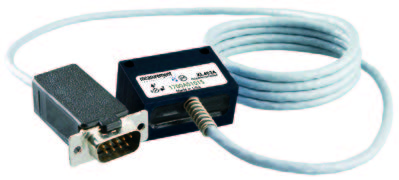

XL403D, Digital Triaxial Accelerators
- Triaxial MEMS DC Accelerometer
- Smart Digital Sensor with Onboard Processing
- ±2g to ±15g Measurement Ranges
- RS485 Interface, User Configurable
- Temperature Output Included
The XL403D represents a breakthrough in accelerometer technology, being the first to support SCPI-like commands and provide data in engineering units directly usable with an ASCII terminal emulator. This digital triaxial accelerometer excels in delivering precise measurements across ranges from ±2g to ±15g, with the added versatility of user-configurable settings. Its smart sensor capabilities allow for the performance of basic functions such as evaluating minimum, maximum, magnitude, peak-to-peak, and tilt computations directly on the device, significantly reducing the need for extensive post-processing.
Equipped with a temperature sensor and a microcontroller, the XL403D samples data at 10-bit resolution, ensuring accurate temperature compensation and the execution of additional programmed functions. Outputs are configurable via the RS-485 interface, with a customizable 5-pole LP filter setting between 1Hz and 800Hz for tailored data analysis. Each sensor output undergoes full temperature compensation, enhancing measurement accuracy by minimizing variations due to temperature changes and aging effects. With built-in calibration in accordance with NIST standards, and a self-test feature for verifying channel integrity, the XL403D is designed for precision across a wide range of applications, from industrial monitoring to advanced research projects.
Features and Benefits
- Built-in Analyses: Onboard microcontroller minimizes the need for external post-processing, simplifying data analysis with direct requests for minimum, maximum, peak-to-peak, magnitude, tilt, or threshold values.
- Dynamic Customer Interface: Utilizes SCPI-like commands for easy configuration and measurement adjustments, supporting custom scan rates, threshold detection, and synchronized data collection across multiple sensors.
- Flexible Output: Offers detailed readouts including one, two, or three axes plus temperature, in engineering units or raw ADC counts, adaptable to RS232 or RS485 baud rates.
- Built-in Calibration: Ensures that all data output is calibrated to NIST standards, maintaining accuracy over the sensor's operational life.

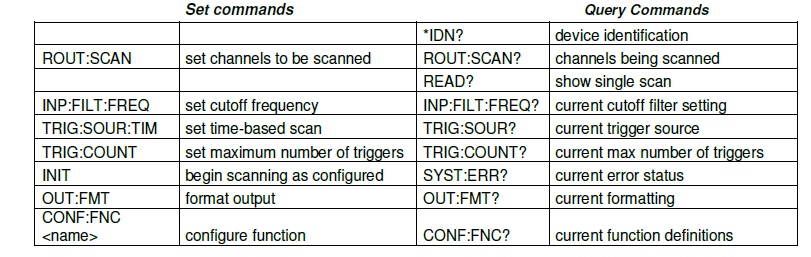

XL403D SAMPLE COMMANDS

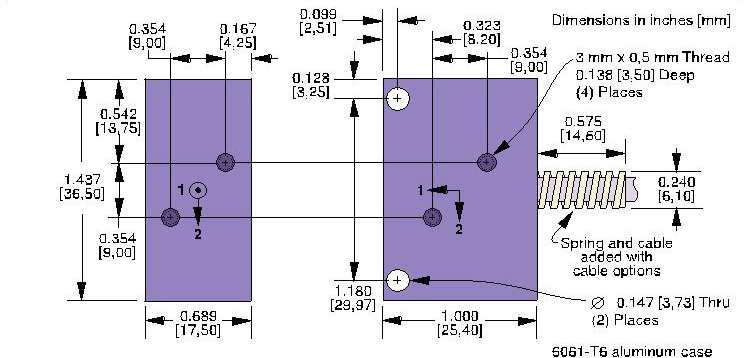

DIMENSIONS
Pin 1: +ANALOG OUT AXIS 1 (BROWN)
Pin 2: -ANALOG OUT AXIS 2 (RED)
Pin 3: +ANALOG OUT AXIS 3 (ORANGE)
Pin 4: -SIGNAL OUT (YELLOW)
Pin 5: -RS485 (GREEN)
Pin 6: +RS485 (BLUE)
Pin 7: SELF TEST/AUX (VIOLET)
Pin 8: +EXC VOLTAGE (GREY)
Pin 9: -EXC VOLTAGE/GND (WHITE)
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 2 g |
| 5 g | |
| 10 g | |
| 15 g | |
| Excitation | 8 - 36 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
- Smart sensor function,
- Vibration monitoring
- Alarm functions
XL403D Datasheet Datasheet |
