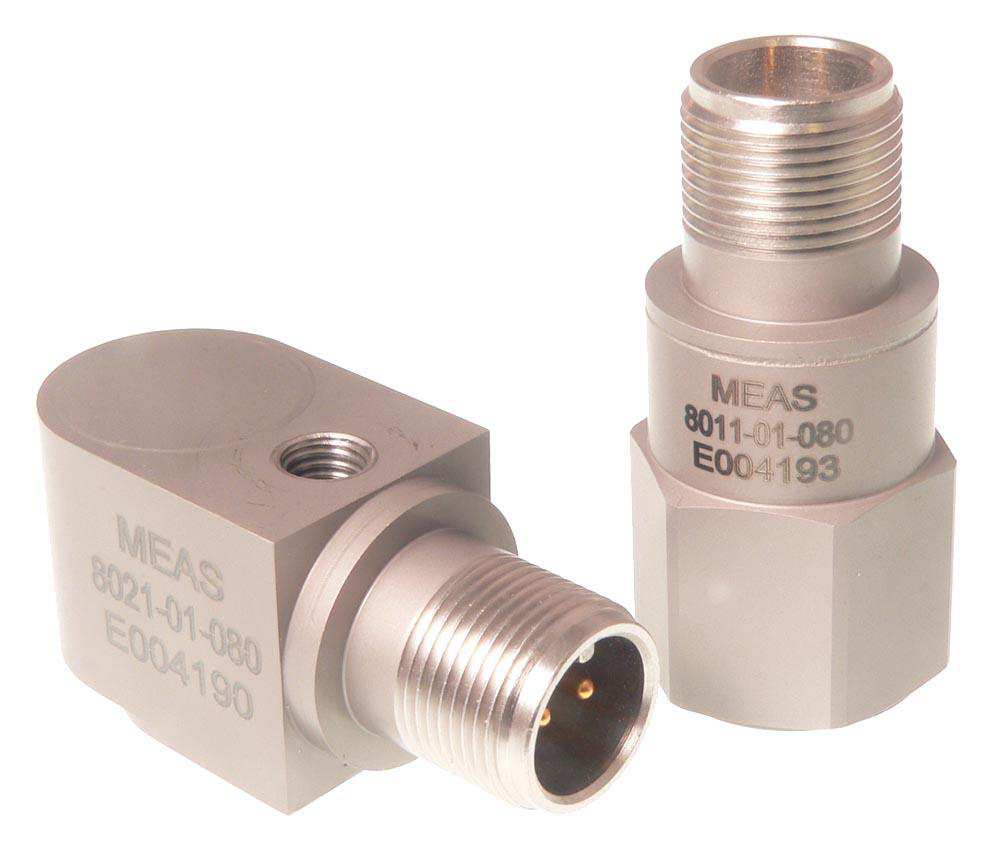

8011-01, 8021-01, Stainless Steel Uniaxial Accelerometer
- IEPE Technology: Integrated electronics for direct, high-fidelity signal processing.
- Dynamic Range: Versatile options from ±10g to ±500g to suit various monitoring needs.
- High Bandwidth: Greater than 16kHz, enabling detailed vibration analysis.
- Durable Construction: Hermetically sealed for operation in harsh environments.

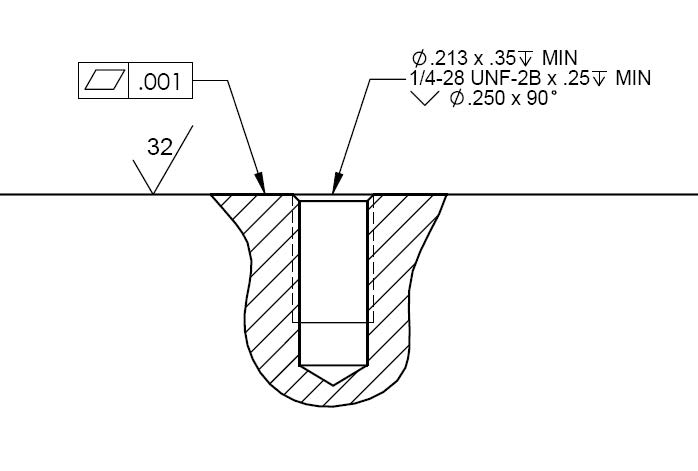

- Versatile Mounting: Options for stud, screw, or adhesive mounting to accommodate diverse application requirements.
The Model 8011-01 & 8021-01 accelerometers from TE Connectivity Sensors are built to withstand the rigors of industrial environments, encapsulated in a durable design for reliable condition monitoring. These IEPE (Integrated Electronics Piezoelectric) accelerometers come in dynamic ranges from ±10g to ±500g, catering to a vast spectrum of industrial applications. They feature a MIL-C-5015 connector, with the 8011 model boasting a top connector and the 8021 model a side connector, enhancing their adaptability to different installation requirements. Designed to operate within a temperature range of -55°C to +125°C, these hermetically sealed units ensure consistent performance in extreme conditions. Whether stud or screw mounted, or even adhesively attached, these accelerometers maintain their precision and reliability, making them suitable for a wide range of applications including general-purpose monitoring, machine condition assessment, and preventive maintenance in harsh industrial settings.

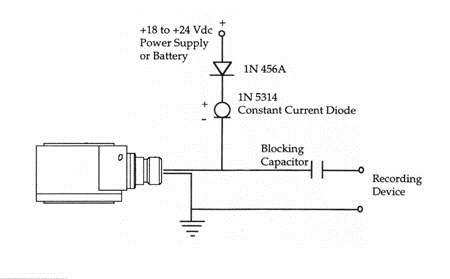

WIRING
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 10 g |
| 100 g | |
| Min Temperature | -55 °C |
| Max Temperature | 125 °C |
- Machine Condition Monitoring
- Industrial Applications
- Preventive & Predictive Maintenance
8011-8021 Accelerometer Datasheet Datasheet |
- IEPE
- Cost Effective
- General Purpose
- 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g or 500 mV/g sensitivity
- 10g, 25g, 50g, 100g, 250g or 500g range
- 1 to 10,000 Hz frequency range (±5%)
- 10-32 radial connector
- 10-32 tapped hole
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g |
| Output | 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g, 500 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Titanium |
- IEPE
- IEEE 1451.4 TEDS capabilities
- TEDS Operational Temperature Range: -40 to +85°C
- 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g or 500 mV/g sensitivity
- 25g, 50g, 100g, 250g, 500g range
- 1 to 10,000 Hz frequency range (±10%)
- 10-32 axial connector
- 10-32 tapped hole
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 25 g, 50 g, 100 g, 250 g, 500 g |
| Output | 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g, 500 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Titanium |
- IEPE
- 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g or 500 mV/g sensitivity
- 10g, 25g, 50g, 100g, 250gm, 500g, 1000g range
- 1 to 10,000 Hz frequency range (±10%)
- 10-32 axial connector
- 10-32 tapped hole
- Weight: 10 grams
- Titanium
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g, 1000 g |
| Output | 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g, 500 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Titanium |
- IEPE
- IEEE 1451.4 TEDS
- TEDS Operational Temperature Range: -40 to +85°C
- 10 mV/g, 50 mV/g, 100 mV/g, 200 mV/g or 500 mV/g sensitivity
- 10g, 25g, 50g, 100g, or 500g range
- 1 to 10,000 Hz frequency range (±10%)
- 10-32 radial connector
- 10-32 tapped hole
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 500 g |
| Output | 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g, 500 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Titanium |
- IEPE
- Low noise JFET electronics
- Cost effective
- 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g or 500 mV/g sensitivity
- 10g, 25g, 50g, 100g, 250g or 500g range
- 1 to 10,000 Hz frequency range (±5%)
- 10-32 axial connector
- 10-32 tapped hole
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g |
| Output | 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g, 500 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Titanium |
