8811-01, Stud mount Uniaxial Alcolmeter
- Industrial IEPE Accelerometer
- Lightning Protected to >5,000V
- -55°C to +125°C Operating Range
- Top Exit Connector
- Low Noise, Wide Bandwidth
- ±5g, ±10g, ±20g & ±80g Ranges
- Frequency Response >10kHz
- Case Isolated, Internally Shielded
- Hermetically Sealed, Welded
- Annular Shear Mode
- Reverse Wiring Protection
The Model 8811-01 stands out in the field of industrial vibration monitoring with its specialized lightning protection feature, safeguarding against transients up to ±2.5kV. This rugged IEPE accelerometer is built to withstand the toughest conditions, making it ideal for installations like wind towers where lightning exposure is a significant risk. It offers four standard dynamic ranges (±5g, ±10g, ±20g, and ±80g) and a frequency response exceeding 10kHz, ensuring comprehensive vibration analysis across various applications. Featuring a top exit MIL-C-5015 connector and designed to operate over a wide temperature range (-55°C to +125°C), this accelerometer is both versatile and reliable. Its case isolation, internal shielding, and hermetic sealing further enhance its performance in industrial settings, from machine condition monitoring to gearbox analysis in harsh environments.

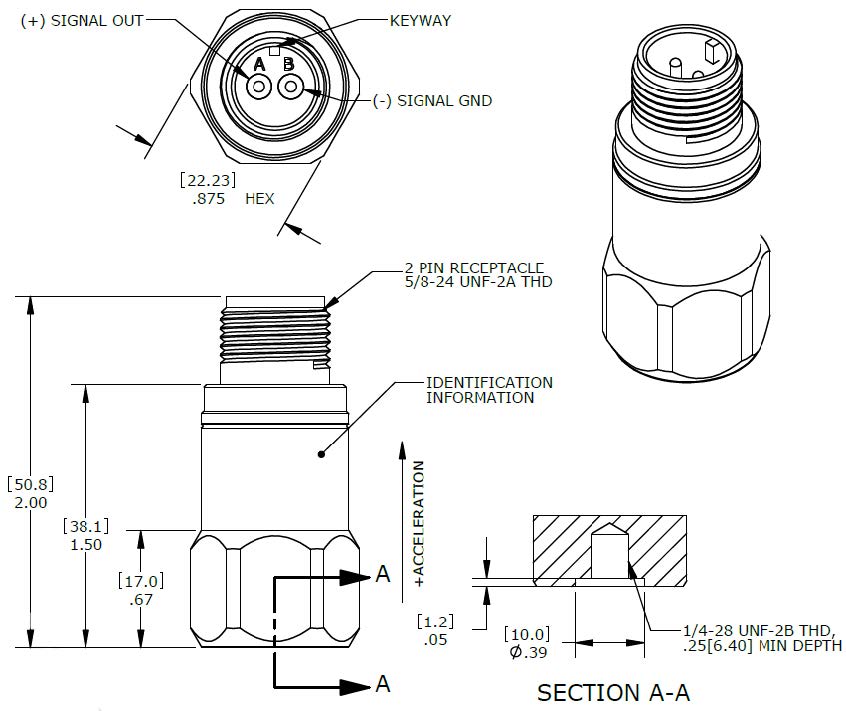

Dimensions

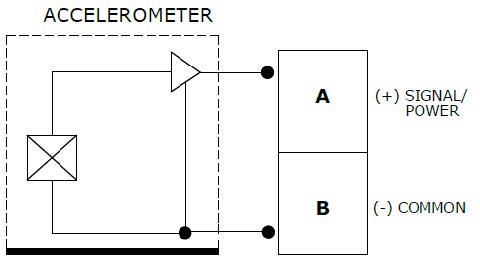

Schematic
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 5 g |
| 10 g | |
| 20 g | |
| 80 g | |
| Min Temperature | -55 °C |
| Max Temperature | 125 °C |
Datasheet Datasheet |
- Industrial IEPE Accelerometer
- Low Cost, Quick Delivery
- -55°C to +125°C Operating Range
- Top Exit Connector
- Low Noise, Wide Bandwidth
- ±5g, ±10g, ±20g & ±80g Ranges
- Frequency Response >10kHz
- Case Isolated, Internally Shielded
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 5 g, 10 g, 20 g, 80 g |
| Min Temperature | -55 °C |
| Max Temperature | 125 °C |
- IEPE
- Cost Effective
- General Purpose
- 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g or 500 mV/g sensitivity
- 10g, 25g, 50g, 100g, 250g or 500g range
- 1 to 10,000 Hz frequency range (±5%)
- 10-32 radial connector
- 10-32 tapped hole
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g |
| Output | 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g, 500 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Titanium |
- IEPE
- 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g or 500 mV/g
- 10g, 25g, 50g, 100g, 250g, 500g or 1000g
- 1 to 10,000 Hz frequency range (±5%)
- 10-32 axial connector
- 10-32 tapped hole
- Weight: 10 grams
- Titanium
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g, 1000 g |
| Output | 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g, 500 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Titanium |
- IEPE
- IEEE 1451.4 TEDS capabilities
- TEDS Operational Temperature Range: -40 to +85°C
- 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g or 500 mV/g sensitivity
- 25g, 50g, 100g, 250g, 500g range
- 1 to 10,000 Hz frequency range (±10%)
- 10-32 axial connector
- 10-32 tapped hole
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 25 g, 50 g, 100 g, 250 g, 500 g |
| Output | 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g, 500 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Titanium |
- IEPE
- 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g or 500 mV/g sensitivity
- 10g, 25g, 50g, 100g, 250gm, 500g, 1000g range
- 1 to 10,000 Hz frequency range (±10%)
- 10-32 axial connector
- 10-32 tapped hole
- Weight: 10 grams
- Titanium
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g, 1000 g |
| Output | 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g, 500 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Titanium |
