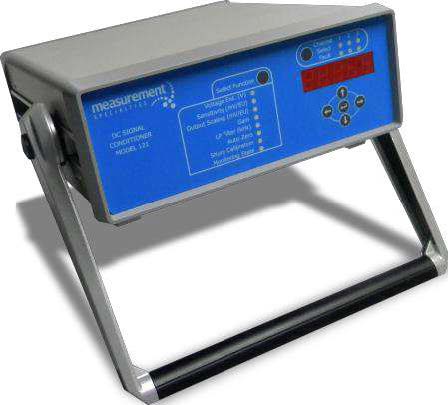

121, Desktop Strain Gauge Bridge Amplifier
The Model 121 is a 3-channel precision DC amplifier with programmable gain and output scaling, featuring exceptionally low input noise and a wide bandwidth up to 200kHz, suitable for high-precision measurements.
Features:
- 3-Channel DC Differential Amplifier
- Programmable Gain & Output Scaling
- <20μVrms Input Noise
- Includes Auto-Zero Function
- DC to 200kHz Bandwidth
- ±12.5Vdc Dual Excitation Voltage
- 0-25Vdc Single-Ended Excitation Voltage
- ±20mV Auto-Zero Function
- 4-pole Butterworth LP Filters
- Shunt Calibration Function
Manufacturer: TE CONNECTIVITY (TE)
Quote
Datasheet
Specifications
Downloads
121 - Specifications
| Input Type | Strain Gage, mV/V |
| # of Inputs | 3 |
| Excitation | 12.5 Vdc |
121 - Downloads
121 Datasheet Datasheet |
