7101A, Center-hole mount Uniaxial Accelerators
- IEPE Accelerometer
- Wide Bandwidth to 10kHz
- M3 Side Connector
- Miniature, Lightweight (2.4gm)
- ±50g to ±1000g Dynamic Range
- Welded Construction, Titanium
- Hermetically Sealed
- Annular Shear Mode
- Stable Temperature Response
- Through-Hole Mount

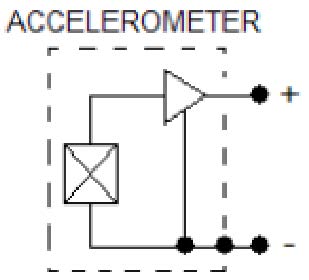

The Model 7101A IEPE Accelerometer encapsulates advanced vibration and shock measurement capabilities within a miniature, lightweight frame, weighing just 2.4 grams. Designed to cater to a broad spectrum of high-frequency applications, it provides dynamic measurement ranges from ±50g to ±1000g, making it versatile for both delicate and extreme conditions. The accelerometer's core is powered by stable piezo-ceramic crystals operating in annular shear mode, ensuring precise data capture with a bandwidth extending beyond 10kHz.
Constructed with a welded titanium body, the 7101A is hermetically sealed, guaranteeing durability and reliability across a standard operating temperature range of -55°C to +125°C. Its through-hole mount configuration, complemented by an M3 side connector, facilitates easy and secure installation, making it ideal for a wide array of applications including laboratory testing, modal analysis, and general-purpose vibration and shock monitoring. The annular shear mode design not only enhances measurement accuracy but also provides a stable temperature response, ensuring consistent performance under varying environmental conditions.
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 50 g |
| 500 g | |
| 1000 g | |
| Excitation | 2 - 10 V DC |
| Min Temperature | -55 °C |
| Max Temperature | 125 °C |
- Vibration & Shock Monitoring
- Laboratory Testing
- Modal Applications
- High-Frequency Applications
- General Purpose Usage
7101A Accelerometer Datasheet Datasheet |
- +150°C IEPE Accelerometer
- Wide Bandwidth to 15kHz
- Hermetically Sealed
- Through Hole Mount
- ±50g to ±500g Dynamic Range
- Annular Shear Mode
- Isolated Mounting Surface
- Stable Temperature Response
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 50 g, 100 g, 500 g |
| Excitation | 2 - 20 V DC |
| Min Temperature | -55 °C |
| Max Temperature | 150 °C |
- Hybrid design
- Dual mode technology: incorporates AC and DC into one sensor
- 20g, 40g, and 200gs Range available
- 10 mV/g, 50 mV/g and 100 mV/g Sensitivity available
- 0 to 10,000 Hz frequency range (3dB)
- 4-pin M4.5 x 0.35 radial connector
- 10-32 tapped hole
- Weight: 15 grams
| Type | Voltage Mode (IEPE), DC Response |
| # of Axis | 1 |
| Full Scale | 20 g, 40 g, 200 g |
| Output | 10 mV/g, 50 mV/g, 100 mV/g |
| Excitation | 3 - 11 V DC |
| Material | Titanium |
- IEPE
- Miniature design
- 5 mV/g, 10 mV/g or 100 mV/g sensitivity available
- 50g, 500g, or 1000g range available
- 0.5 to 10,000 Hz (±5%)
- 5-44 axial connector
- Adhesive mount
- Weight: 2.1 grams
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 50 g, 500 g, 1000 g |
| Output | 5 mV/g, 10 mV/g, 100 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Stainless Steel |
- IEPE
- 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g or 500 mV/g
- 10g, 25g, 50g, 100g, 250g, 500g or 1000g
- 1 to 10,000 Hz frequency range (±5%)
- 10-32 axial connector
- 10-32 tapped hole
- Weight: 10 grams
- Titanium
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 10 g, 25 g, 50 g, 100 g, 250 g, 500 g, 1000 g |
| Output | 5 mV/g, 10 mV/g, 20 mV/g, 50 mV/g, 100 mV/g, 200 mV/g, 500 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Titanium |
- IEPE
- 5 mV/g, 10 mV/g, 50 mV/g, or 100 mV/g sensitivity
- 50g, 100g, 500g, or 1000g range available
- 0.5 to 10,000 Hz (±5%)
- 5-44 radial connector
- Adhesive mount
- Weight: 2.5 grams
- Stainless steel
| Type | Voltage Mode (IEPE) |
| # of Axis | 1 |
| Full Scale | 50 g, 100 g, 500 g, 1000 g |
| Output | 5 mV/g, 10 mV/g, 50 mV/g, 100 mV/g |
| Excitation | 18 - 30 V DC |
| Material | Stainless Steel |
