SG, SR, Draw Wire Displacement Sensor
- Low-cost, high-value string potentiometer
- Versatile stainless steel mounting bracket
- Simple one-button user scalable stroke range (SR)
- Custom configurations available for OEM customers
Designed for demanding industrial environments, the SG and SR sensors provide accurate and reliable measurements with a range of 0-80 to 0-175 inches. They are equipped with versatile output options to suit various application needs, including voltage divider, 0-5 VDC, 0-10 VDC, 4-20 mA, incremental encoder, and CANbus communications.
These sensors are built to last, featuring an IP67-rated polycarbonate enclosure with a stainless steel bracket, ensuring durability and resistance to harsh conditions. The operating temperature range of -40°C to 85°C makes them suitable for outdoor applications.
Unique features include a low-cost, high-value design, versatile mounting options, and a simple one-button user-scalable stroke range for the SR model. They also offer custom configurations to meet specific OEM requirements, adding to their flexibility and utility in various settings.
| Type | Draw Wire |
| Output | 0 - 5 V DC |
| 0 - 10 V DC | |
| IP Rating | IP67 |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
- Outdoor Mobile Construction Equipment: Ensures precise positioning.
- Outrigger Positioning: Enhances stability and safety.
- Hydraulic Lifts: Improves operational efficiency.
- Water and Power Controls: Offers reliable measurement for control systems.
- Compact design
- M12 connectivity
- Adjustable mounting bracket
| Type | Draw Wire |
| Output | 0 - 10 V DC |
| IP Rating | IP67 |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
- Compact design
- M12 connection
- Adjustable mounting bracket
- Free-release tolerant
- Custom configurations for OEMS
| Type | Draw Wire |
| Output | 0 - 10 V DC |
| Non-Linearity | ±0.25 % FS, ±1.00 % FS |
| IP Rating | IP50, IP67 |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
- Broad Range: 0 - 2 to 0 - 250 inches for extensive application coverage.
- Versatile Outputs: Supports voltage divider, 0 - 5/10 VDC, 4 - 20 mA, and more.
- High Durability: IP65/IP67 rating (PT5) for environmental resilience.
- Precision: Accuracy from ±0.04% to ±0.25%.
- User-Serviceable: Designed for easy maintenance.
- Compact: PT1 features a space-saving design.
- Wide Temperature Range: Suitable for -40°C to 90°C.
| Type | Draw Wire |
| Full Scale | 0 - 50 mm, 0 - 6350 mm |
| Output | 0 - 5 V DC, 0 - 10 V DC |
| Non-Linearity | ±0.04 % FS, ±0.25 % FS |
| IP Rating | IP65, IP67 |
| Min Temperature | -40 °C |

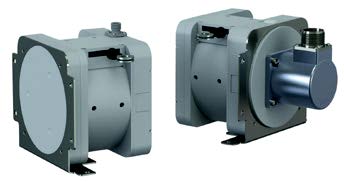

- Tape Actuated
- Analog, Programmable Analog, SSI or CAN Output
- Rectanglular Profile Housing
- Aluminum/Plastic/Stainless Steel
- Connection: Analog: 5-pin M12 Connector
- Connection: SSI: 8-pin M12 Connector
- Connection: CAN: 5-pin M12 Connector
- Stainless Steel Measuring Tape
| Type | Draw Wire |
| Full Scale | 8000 mm, 10000 mm, 12500 mm, 15000 mm, 17500 mm, 20000 mm |
| Output | 0.5 - 4.5 V DC, 0.5 - 10 V DC, 4 - 20 mA, SSI, CANopen, CAN SAE J1939 |
| Non-Linearity | ±0.05 % FS, ±0.10 % FS |
| Resolution | 0.05 mm |
| Excitation | 10 - 36 V DC |
- Tape Actuated
- Analog, Programmable Analog, SSI or CAN Output
- Rectanglular Profile Housing
- Plastic/Stainless Steel
- Connection: Analog: 5-pin M12 Connector
- Connection: SSI: 8-pin M12 Connector
- Connection: CAN: 5-pin M12 Connector
- Stainless Steel Measuring Tape
| Type | Draw Wire |
| Full Scale | 5000 mm, 6000 mm |
| Output | 0.5 - 4.5 V DC, 0.5 - 10 V DC, 4 - 20 mA, SSI, CANopen, CAN SAE J1939 |
| Non-Linearity | ±0.05 % FS, ±0.10 % FS |
| Resolution | 0.05 mm |
| Excitation | 8 - 36 V DC, 10 - 36 V DC |
