PT101, Draw Wire Displacement Sensor
- Absolute Linear Position
- Classic String Pot Design
- Stroke Range Options: 0 - 2 to 0 -100 inches
- Powder Painted & Anodized Aluminum Enclosure
- Industrial Automation & Testing Applications
The PT101 by Celesco is rooted in a design that dates back to the late 1960s and has become a staple in various fields, from aircraft structural testing and hydraulic cylinder control to valve stem opening and industrial automation. It offers a comprehensive range of full stroke options from 2 to 100 inches. The PT101 stands out for its straightforward installation process, not requiring perfect parallel alignment, and its robust design featuring a powder-painted and anodized aluminum enclosure.
This sensor generates a voltage divider output signal that is linearly proportional to the position of its traveling stainless steel measuring cable, ensuring precise feedback for extensive applications. The PT101 is celebrated for its instrument-grade accuracy, ranging from ±0.25% to ±0.10% full stroke, along with its exceptional repeatability and essentially infinite resolution.

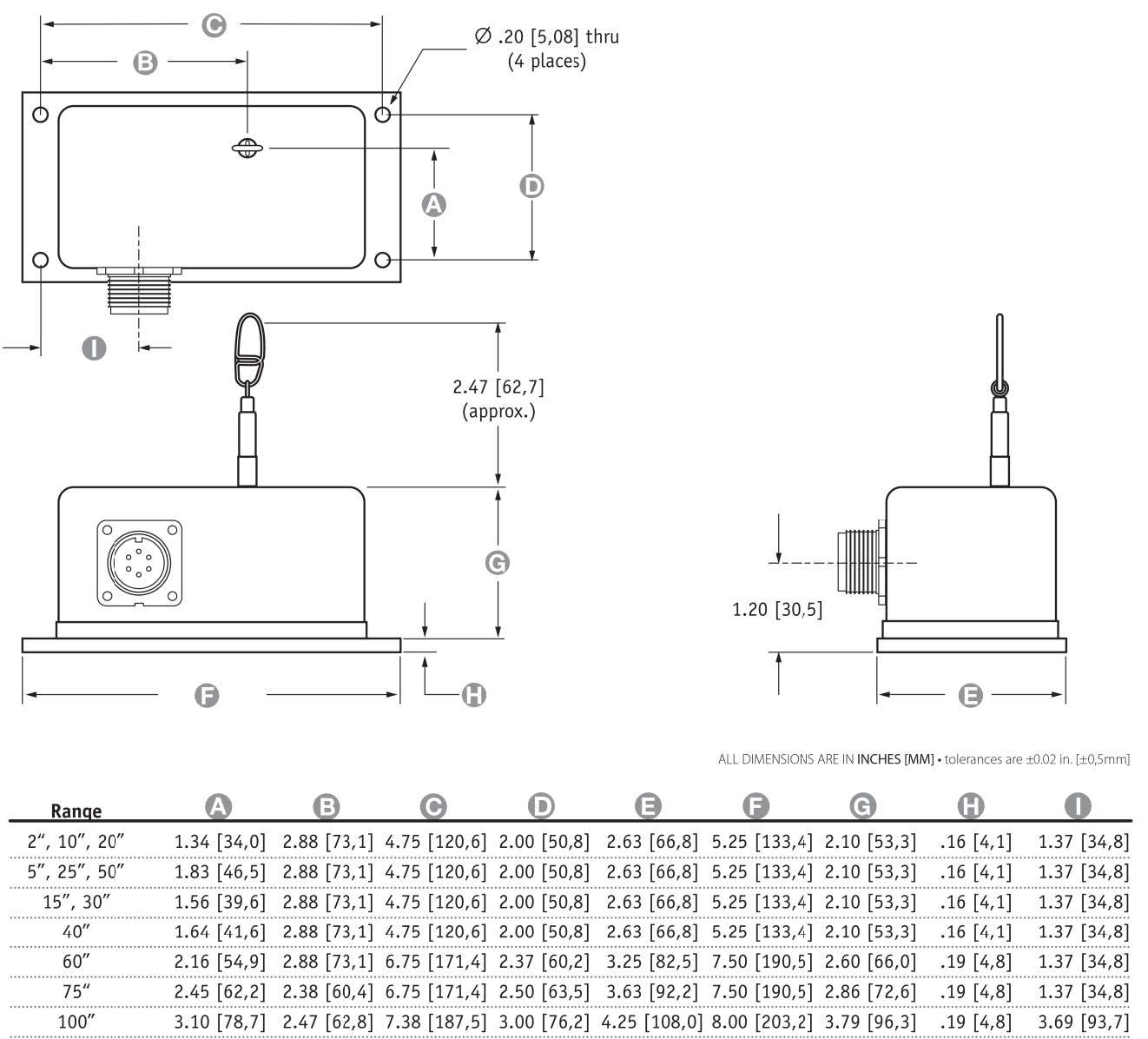

Top Exit
| Type | Draw Wire |
| Output | Potentiometric |
| Non-Linearity | ±0.25 % FS |
| Resolution | Infinitesimal |
| IP Rating | IP50 |
| Min Temperature | -40 °C |
| Max Temperature | 90 °C |
- Aircraft Structural Testing
- Hydraulic Cylinder Control
- Valve Stem Opening
- Industrial Automation
PT101 Draw Wire sensor datasheet Datasheet |
- Compact design
- M12 connection
- Adjustable mounting bracket
- Free-release tolerant
- Custom configurations for OEMS
| Type | Draw Wire |
| Output | 0 - 10 V DC |
| Non-Linearity | ±0.25 % FS, ±1.00 % FS |
| IP Rating | IP50, IP67 |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
- Draw wire sensor with dual output: position (potentiometer) and velocity (DC tachometer)
- Stroke ranges: 2 to 100 inches
- Infinite resolution and high repeatability (±0.02%)
- Position accuracy: ±0.10% to ±0.25% FS
- Velocity linearity: ±0.10%
- Self-generating tachometer output, no excitation required
- Anodized aluminum housing (IP50 / NEMA 1)
- Operating temperature: -40°C to +90°C
| Type | Draw Wire |
| Full Scale | 50.8 mm [2"], 127 mm [5"], 254 mm [10"], 381 mm [15"], 508 mm [20"], 635 mm [25"], 762 mm [30"], 1016 mm [40"], 1270 mm [50"], 1524 mm [60"], 1905 mm [75"], 2540 mm [100"] |
| Output | Potentiometric |
| Non-Linearity | ±0.25 % FS |
| IP Rating | IP50 |
| Min Temperature | -40 °C |
- Cable Actuated
- Velocity Sensor with Integrated Position Sensor
- Potentiometric, Analog or ADSI Output
- Rectangular Profile Housing
- Anticorrosive Sheet Steel
- Connection: Male 8-pin DIN 45326
- Stainless Steel Cable
| Type | Draw Wire |
| Full Scale | 1500 mm, 2000 mm, 2500 mm |
| Output | 0 - 10 V DC, Potentiometric, 4 - 20 mA, SSI |
| Non-Linearity | ±0.05 % FS |
| Resolution | Infinitesimal |
| Excitation | 11 - 27 V DC, 12 - 27 V DC, 18 - 27 V DC, 32 V DC |
- Cable Actuated
- Velocity Sensor with Integrated Position Sensor
- Potentiometric, Analog or ADSI Output
- Rectangular Profile Housing
- Anticorrosive Sheet Steel
- Connection: Male 8-pin DIN 45326
- Stainless Steel Cable
| Type | Draw Wire |
| Full Scale | 3750 mm, 5000 mm, 7500 mm |
| Output | 0 - 10 V DC, Potentiometric, 4 - 20 mA, SSI |
| Non-Linearity | ±0.05 % FS |
| Resolution | Infinitesimal |
| Excitation | 11 - 27 V DC, 12 - 27 V DC, 18 - 27 V DC, 32 V DC |
- Cable Actuated
- Velocity Sensor with Integrated Position Sensor
- Potentiometric, Analog or ADSI Output
- Rectangular Profile Housing
- Anticorrosive Sheet Steel
- Connection: Male 8-pin DIN 45326
- Stainless Steel Cable
| Type | Draw Wire |
| Full Scale | 10000 mm, 12500 mm, 15000 mm |
| Output | 0 - 10 V DC, Potentiometric, 4 - 20 mA, SSI |
| Non-Linearity | ±0.05 % FS |
| Resolution | Infinitesimal |
| Excitation | 11 - 27 V DC, 12 - 27 V DC, 18 - 27 V DC, 32 V DC |
