M12, Intelligent Vibration Monitoring Transmitter
- Premium performance at competitive price
- Low 100ppm/°C temperature coefficient
- Low phase shift
- Metric 12mm housing diameter
- Stroke ranges from ±10 to ±100mm
- Stainless steel housing
- Magnetically shielded
- Imperial or metric threaded core
The M-12 Series represents a leap in LVDT technology, combining premium performance with affordability. These 12mm diameter AC LVDTs (Linear Variable Differential Transformers) are engineered for precision materials testing and position feedback applications, where superior linearity and reliability are paramount. Utilizing state-of-the-art, computerized winding techniques, the M-12 Series achieves a flawless transfer function, crucial for high-precision tasks.
These sensors boast an exceptional stroke to length ratio, thanks to precision layer windings, ensuring optimal performance without compromising sensor linearity. The design is further enhanced by a low temperature coefficient of 100ppm/°C and minimal phase shift, ensuring stable outputs across various temperatures.
The M-12 LVDTs are designed with a magnetically shielded, ribless bobbin and an internal high-permeability magnetic shield, offering unmatched protection against electromagnetic interference. Encased in AISI 304 Series stainless steel housing, these sensors are safeguarded against corrosion, making them suitable for use in harsh environments. The windings are vacuum impregnated with high-temperature resin and the coil assembly is securely potted with epoxy, providing excellent resistance to humidity, vibration, and shock.

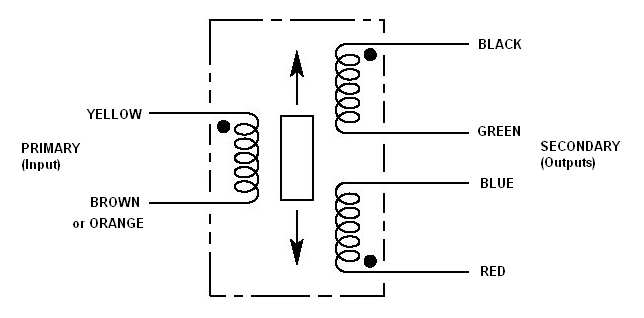

WIRING INFORMATION
| Type | LVDT |
| Full Scale | 10 mm |
| 20 mm | |
| 30 mm | |
| 50 mm | |
| 65 mm | |
| 100 mm | |
| Output | V/V AC |
| Non-Linearity | ±0.25 % FS |
| IP Rating | IP61 |
| Min Temperature | -55 °C |
| Max Temperature | 150 °C |
- Materials testing extensometers
- Cylinder position feedback
- Hydraulic spool valve position feedback
- Roller gap positioning
- Automotive suspension testing
- Flight simulators
- Aircraft flight control feedback
M12, AC LVDT Datasdheet Datasheet |
M12 Manual Manual |
- High Reliability
- Large core-to-bore clearance
- Stroke ranges from ± 0.05 to ±10 inches
- AC operation from 400Hz to 5kHz
- Stainless steel housing
- Imperial or metric threaded core
- Many options and accessories
| Type | LVDT |
| Full Scale | 1.27 mm [0.05"], 2.54 mm [0.1"], 5.08 mm, 7.5 mm, 12.7 mm [0.5"], 25.4 mm [1"], 50.8 mm [2"], 75 mm, 101.6 mm [4"], 125 mm, 250 mm |
| Output | V/V AC |
| Non-Linearity | ±0.25 % FS |
| IP Rating | IP61 |
| Min Temperature | -55 °C |
- Excellent stroke-to-length ratio
- Lower weights than other standard LVDTs with comparable displacement ranges
- Stroke ranges from ±1 to ±10 inches
- Shock and vibration-tolerant
- Stainless steel housing
- Magnetically shielded
- Imperial or metric threaded core
| Type | LVDT |
| Full Scale | 25.4 mm [1"], 50.8 mm [2"], 76.2 mm [3"], 127 mm [5"] |
| Output | V/V AC |
| IP Rating | IP61 |
| Min Temperature | -55 °C |
| Max Temperature | 150 °C |
- Operating pressures to 3,000 PSI
- Bulkhead mounting
- Stroke ranges from ±0.25 to ±1 inch
- AISI 304 stainless steel housing
- Magnetically shielded
- Wide operating temperature range
- Shock and vibration tolerance
| Type | LVDT |
| Full Scale | 6.35 mm [0.25"], 12.7 mm [0.5"], 25.4 mm [1"] |
| Output | V/V AC |
| IP Rating | IP61 |
| Min Temperature | -55 °C |
| Max Temperature | 150 °C |
- LVDT
- Available in Unguided, Guided or Return Spring Version
- Rod Profile Housing
- Stainless Steel Housing
- Connection: 2m Integral Cable (Longer Cable Available)
- High Accuracy
- High Cycle Life
- Alternative Probe Tips Available (see Related Documents)
| Type | LVDT |
| Full Scale | 12 mm, 25 mm [0.984"], 50 mm, 75 mm, 100 mm, 150 mm, 200 mm, 250 mm, 375 mm, 470 mm |
| Output | V/V AC |
| Non-Linearity | ±0.10 % FS, ±0.25 % FS |
| Resolution | Infinitesimal |
| Excitation | 0.5 - 7 V AC, 5 V AC |
- LVDT
- Fully Submersible
- Available as Guided, Unguided or Return Spring Versions
- Cylindrical Profile Housing
- Stainless Steel Housing
- Connection: Multiple Cable & Connector Options
- High Accuracy
- High Cycle Life
| Type | LVDT |
| Full Scale | 12 mm, 25 mm [0.984"], 50 mm, 75 mm, 100 mm, 150 mm, 200 mm, 250 mm, 375 mm, 470 mm |
| Output | V/V AC |
| Non-Linearity | ±0.10 % FS, ±0.25 % FS, ±0.50 % FS |
| Resolution | Infinitesimal |
| Excitation | 0.5 - 7 V AC, 5 V AC |
