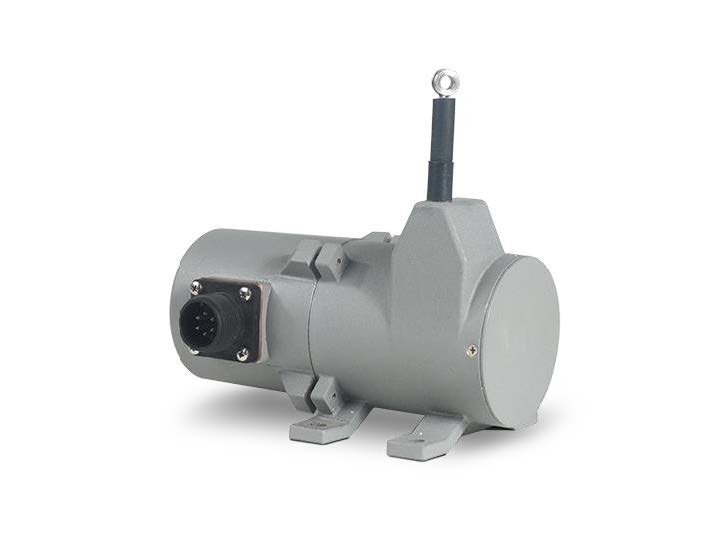

PT8150, Cable Actuated Sensor

Designed for the rigors of heavy industrial environments, the PT8150 cable-actuated sensor exemplifies engineering excellence, offering precise linear position measurement with an incremental optical encoder. This rugged transducer is adept at delivering unparalleled accuracy over its full stroke range, available in 30 and 60 inches or 625 and 1250 mm, with a remarkable accuracy of ±0.04% and repeatability of ±0.02%. The resolution varies from 20 to 500 pulses per inch, catering to diverse application needs.

Constructed with either powder-painted aluminum or stainless steel, the PT8150 ensures robustness and longevity under challenging conditions. The choice between stainless steel or thermoplastic measuring cables adds further versatility, allowing for optimal performance in various operational contexts. The sensor's optical encoder technology secures its position as the most accurate and longest-lasting measurement device in its class.

Installation is straightforward, requiring only the mounting of the sensor body to a stationary surface and the attachment of its cable to the moving object. This flexibility, combined with the ability to function without perfect parallel alignment, makes the PT8150 an ideal solution for spaces where traditional rod-type sensors cannot be used. With features like the VLS option to prevent damage from free release and a broad operating temperature range (0° to 160°F or 17° to 71°C), the PT8150 stands out as a superior choice for demanding industrial applications.

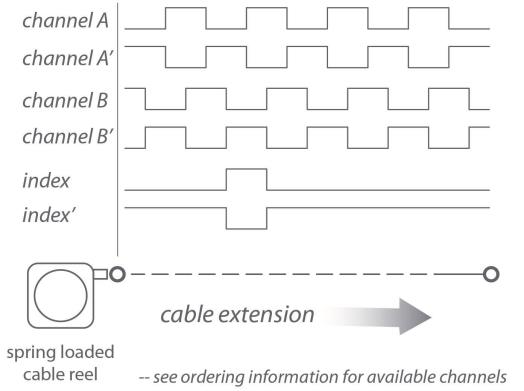

Output Signal

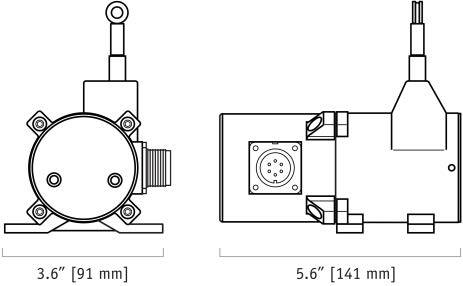

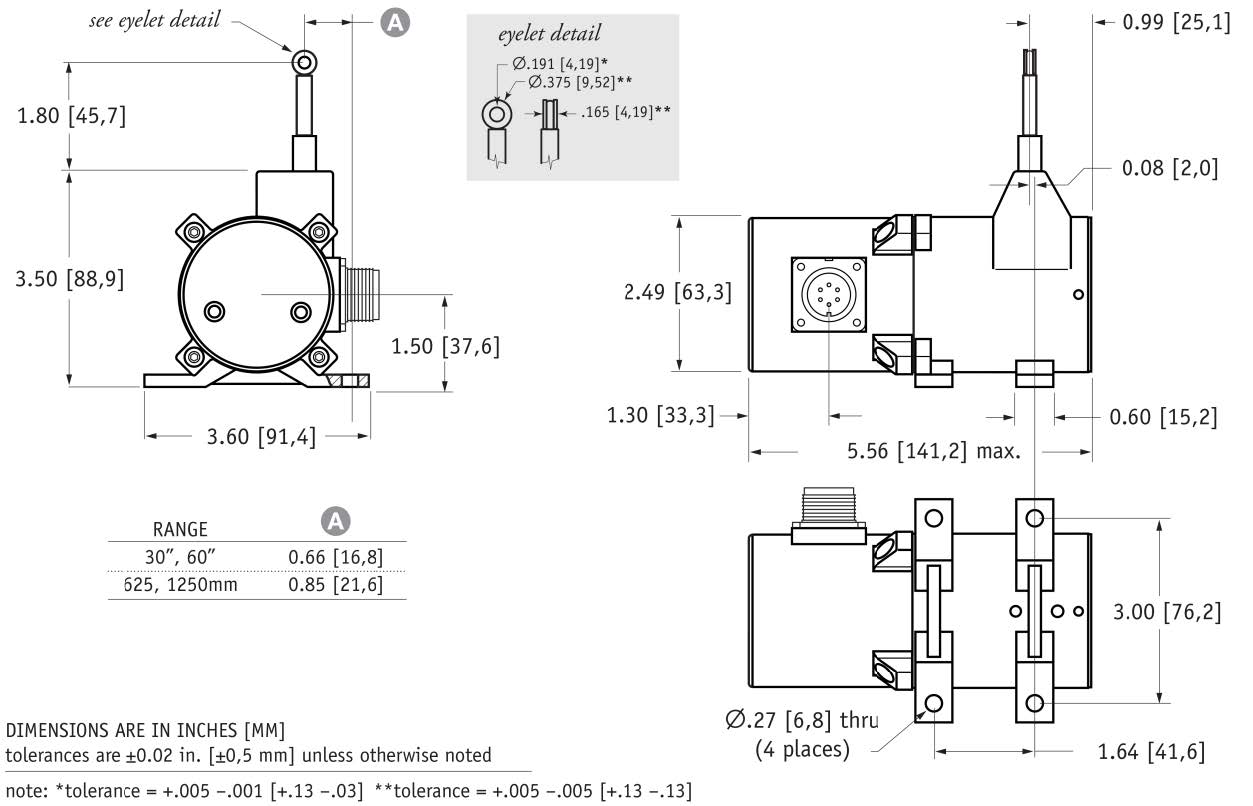

Outline Drawing

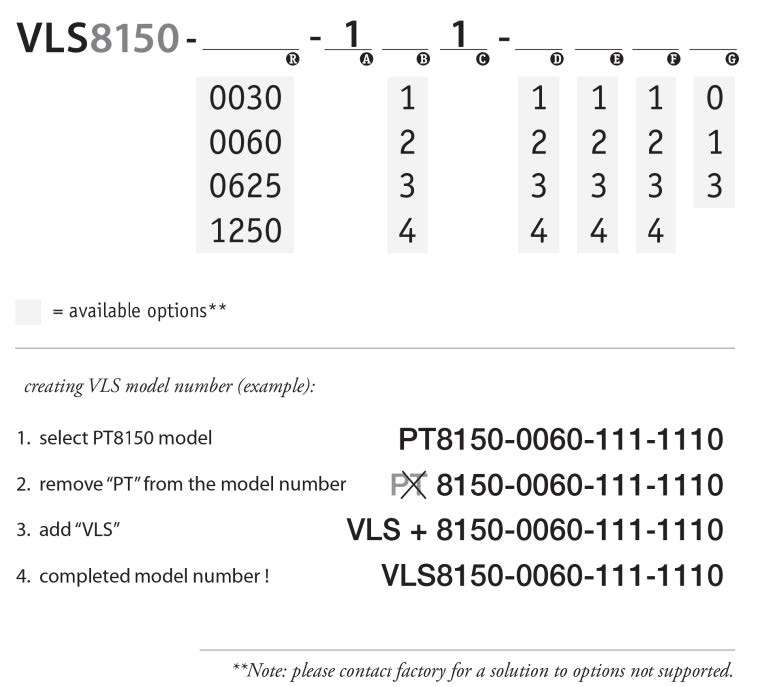

The PT8150 can be enhanced with the Celesco Velocity Limiting System (VLS), designed for the PT8000 Series, to ensure safe cable retraction speeds between 40 to 55 inches per second, preventing damage from accidental releases. Ideal for mobile applications with frequent disconnections, the VLS option helps avoid downtime caused by cable mishandling. Note that VLS is not available for certain configurations, including medium and high tension options, stainless steel enclosures, and specific stroke ranges.
