PT8420, Cable Actuated Sensor
- Absolute Linear Position to 60 inches (1524 mm)
- Aluminum or Stainless Steel Enclosure Options
- VLS Option to Prevent Free-Release Damage
- IP68 / NEMA 6 • Hazardous Area Certification
The PT8420 cable-actuated sensor stands out in the industrial sensing domain, offering unparalleled reliability and accuracy for monitoring hydraulic cylinders and other critical position data acquisition needs in harsh conditions. With its 4-20 mA (2-wire) or optional 0-20 mA (3-wire) output signals, this sensor delivers feedback that is directly proportional to the linear displacement of its durable stainless-steel extension cable. Installation is straightforward, requiring the body to be mounted on a fixed surface and the cable attached to the moving part.
Designed to thrive in challenging environments, the PT8420 features a choice of powder-painted aluminum or stainless steel enclosures and offers hazardous area certifications, ensuring operational safety and durability. Full stroke range options from 0-2 to 0-60 inches and the inclusion of a Velocity Limiting System (VLS) option to prevent free-release damage further enhance its applicability across various industrial scenarios.
Key specifications include a repeatability of ±0.05% full stroke, essentially infinite resolution, and a maximum input current of 20 mA. The sensor supports a broad operating temperature range of -40° to 200°F, with vibration resistance up to 10 g's to 2000 Hz, and comes with NEMA 4/4X/6, IP 67/68 enclosure ratings for comprehensive protection against the elements.

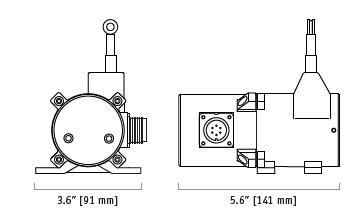

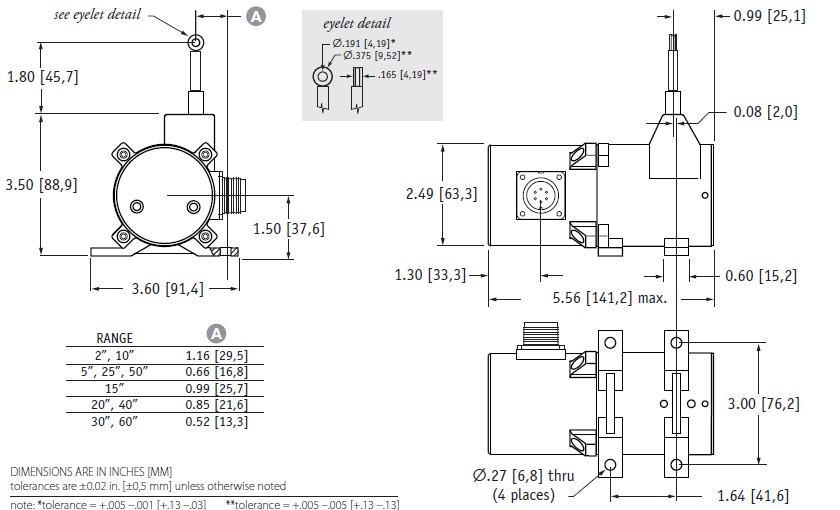

Outline Drawing:
| Type | Draw Wire |
| Full Scale | 50.8 mm [2"] |
| 127 mm [5"] | |
| 254 mm [10"] | |
| 381 mm [15"] | |
| 508 mm [20"] | |
| 635 mm [25"] | |
| 762 mm [30"] | |
| 1016 mm [40"] | |
| 1270 mm [50"] | |
| 1524 mm [60"] | |
| Non-Linearity | ±0.05 % FS |
| IP Rating | IP67 |
| Min Temperature | -40 °C |
| Max Temperature | 90 °C |
- Real-time position feedback for hydraulic cylinders in industrial machinery.
- Position monitoring in hazardous areas requiring certification.
- Data acquisition for automated systems in harsh environmental conditions.
- Industrial applications where precise linear measurement is critical.
- Systems requiring durable and reliable feedback in extreme temperature and vibration conditions.
PT8420 Datasheet Datasheet |
