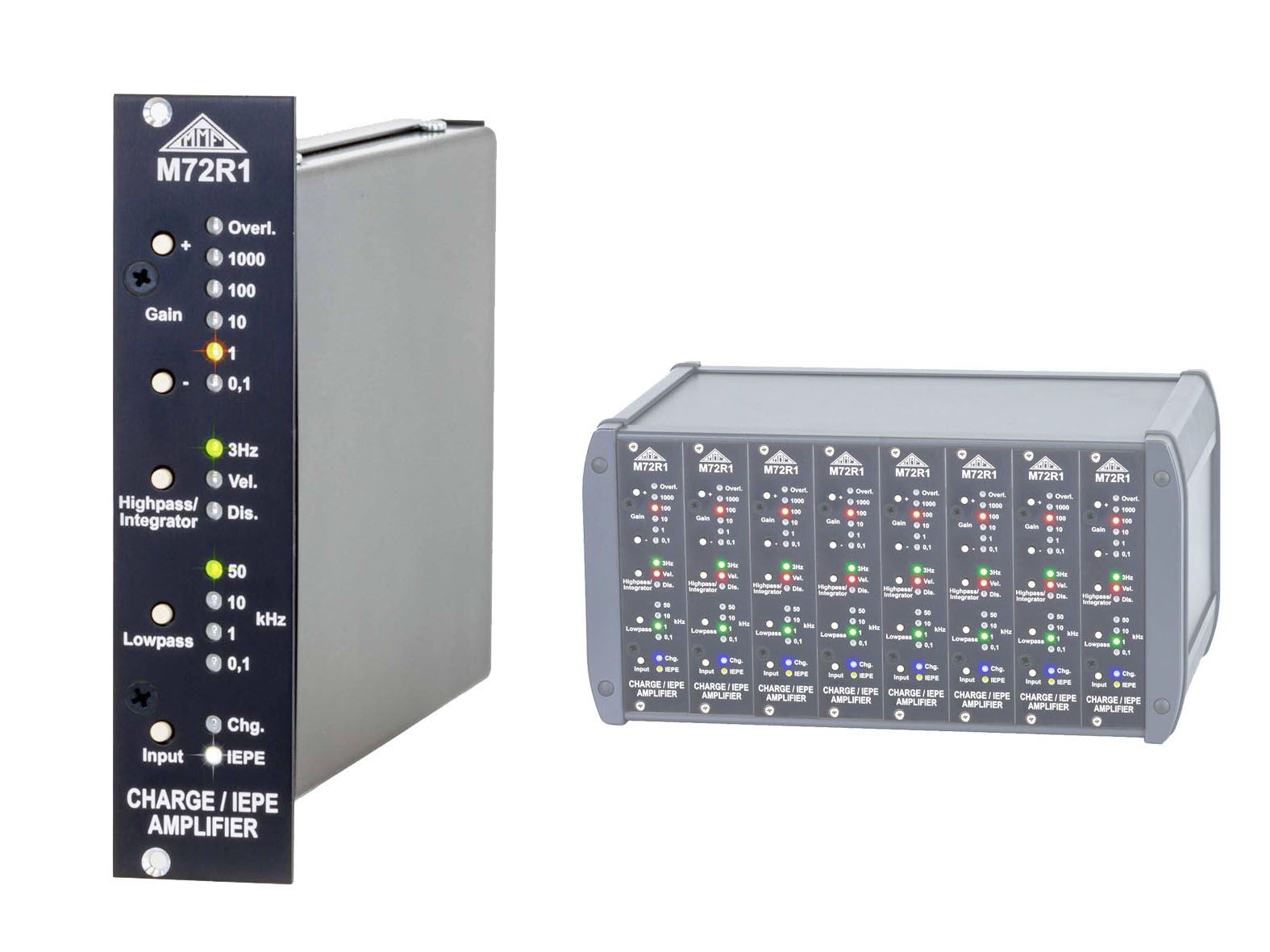

M72R8, 8-Channel Charge and IEPE Signal Conditioner
8-Channel Charge and IEPE Signal Conditioner for precise dynamic measurement in various applications.
Features:
- Component of instrument family M72
- Module for 19-inch rack mounting
- 5 charge and 4 IEPE/AC voltage range with low noise provide a total dynamic range of 140 and 120 dB, respectively
- Output without integration or with single or double integration for the measurement of acceleration, velocity, or displacement
- Low-pass filter with 0.1 / 1 / 10 / 50 kHz, high-pass with 0.1 and 3 Hz
- Digital interface for use in the 8-channel case M72R8
- Operation via front panel push buttons
Manufacturer: MMF
Quote
Datasheet
Description
Specifications
Applications
Downloads
Similar Products
M72R8 - Description
The M72R1 is a key component of the M72 instrument family, designed for 19-inch rack mounting, providing exceptional signal conditioning for dynamic measurements with piezoelectric sensors. It offers 5 charge and 4 IEPE/AC voltage ranges with low noise, delivering total dynamic ranges of 140 dB and 120 dB, respectively. The output can be configured without integration or with single or double integration for acceleration, velocity, or displacement measurements. It features low-pass filters (0.1 / 1 / 10 / 50 kHz), high-pass filters (0.1 and 3 Hz), and a digital interface for the 8-channel case M72R8. The device is operated via front panel push buttons, ensuring user-friendly interaction for setup and adjustments.
M72R8 - Specifications
| Input Type | Piezoelectric (IEPE) |
| # of Inputs | 1 |
| Supply Power | 8 - 28 V DC |
| Min Temperature | -10°C |
| Max Temperature | +55°C |
M72R8 - Applications
- Signal conditioning for dynamic measurement with piezoelectric sensors (acceleration, force, pressure, sound)
- Front-end with anti-aliasing filter for PC data acquisition systems
- Mobile measuring systems
- Test benches in laboratory and production facilities
- Multichannel measuring systems
M72R8 - Downloads
M72R1 Datasheet Datasheet |
M72R8 - Similar Products
Quote
Datasheet

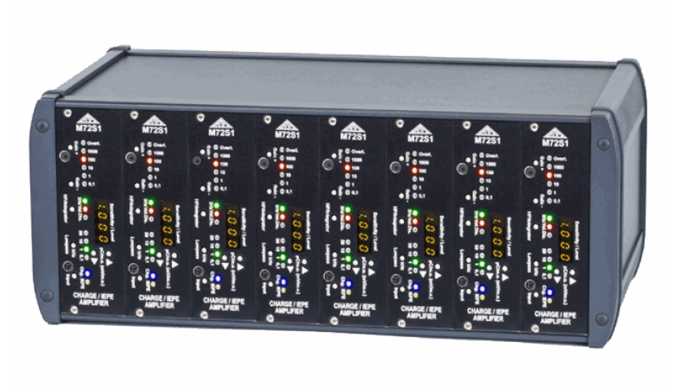

M72A1 / M72A3 / M72S1 - 1 – 3 channel Desktop / Rack Mount charge or IEPE Signal Conditioners - Gain Selections: 0,1 / 1 / 10 / 100 / 1000 mV/pC; 0 / 20 / 40 / 60 dB
- Single and Double Integrators
- Low pass filters: 0.1 / 1 / 10 / 50 kHz
- High pass filters: 0.1 / 3 Hz
- 4 digit mV or pC LED display(s)
- Input & Output BNC connectors
- USB interface on M72S8, Rack Case
- Power Supply: 7-30Vdc, 115 Vac Adaptor
| Input Type | 0 - 10 V AC, Piezoelectric (IEPE) |
| # of Inputs | 1, 3 |
| Output Type | ±10 V DC |
| Max Bandwidth | 50 kHz |
| Supply Power | 9 V DC (Battery), 24 - 30 V DC, 115 V AC |
| Min Temperature | -10°C |
Quote
Datasheet
M72B1 / M72B3 / M72R1 - 1 - 3 Chn Desktop / Rack Mount Amplifiers for IEPE and Charge Amplifiers - Gain Selections: 0,1 / 1 / 10 / 100 / 1000 mV/pC; 0 / 20 / 40 / 60 dB
- single and double integrators
- Low pass filters: 0.1 / 1 / 10 / 50 kHz
- High pass filters: 0.1 / 3 Hz
- Input & Output BNC connectors
- USB interface on M72R8 Rack Case
- Power Supply: 7-30Vdc, 115 Vac Adaptor
| Input Type | 0 - 10 V AC, Piezoelectric (IEPE) |
| # of Inputs | 1, 3 |
| Output Type | ±10 V DC |
| Max Bandwidth | 50 kHz |
| Supply Power | 9 V DC (Battery), 24 - 30 V DC, 115 V AC |
| Min Temperature | -10°C |
- Part of the M72 instrument family.
- Five charge and four IEPE/AC voltage ranges, providing dynamic ranges of 140 dB and 120 dB, respectively.
- Outputs can be configured for acceleration, velocity, or displacement measurements, with options for integration.
- Adjustable low-pass filters (0.1, 1, 10, 50 kHz) and high-pass filters (0.1, 3 Hz).
- Compatible with the 8-channel M72R8 case via a digital interface.
- Sensitivity input with LED display for easy output scaling.
- Supports TEDS for automatic transducer sensitivity reading.
- User-friendly operation through front panel buttons.
| # of Inputs | 1 |
| Supply Power | 8 - 28 V DC |
| Min Temperature | -10°C |
| Max Temperature | +55°C |
