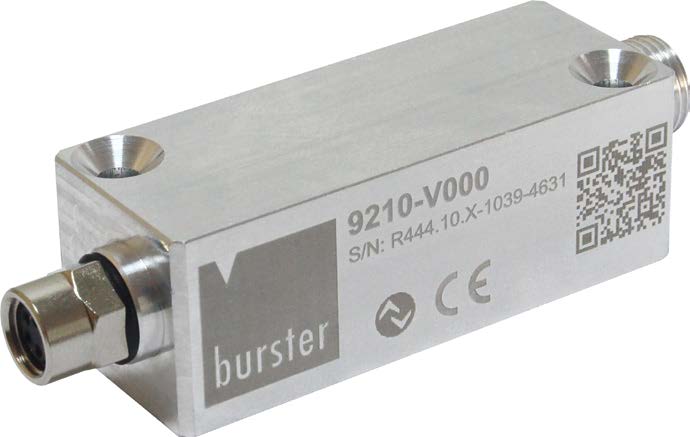

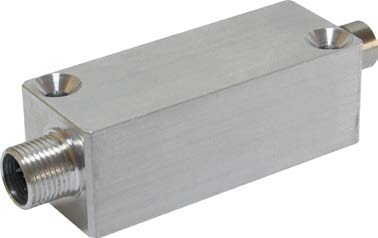

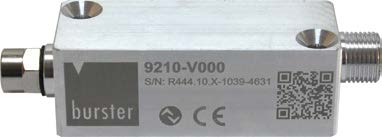

9210, In-Line Amplifiers with IO-Link interface

The Model 9210 instrumentation amplifier integrates digital technology with traditional strain gage measurement techniques, featuring an IO-Link interface that provides a robust and interference-free digital link directly from the sensor. The compact design, with dimensions of 62 x 22 x 24 mm, allows for efficient use in limited spaces.

Engineered for precision, the amplifier exhibits non-linearity of less than 0.005% Full Scale and thermal zero drift below 0.01%/10K, ensuring reliable and stable measurements across a wide range of industrial applications. The aluminum housing, rated at IP65, offers protection against dust and water, making it suitable for harsh environmental conditions where it might be exposed to high vibrations and varying temperatures ranging from -40 to +85°C.

The IO-Link interface simplifies connectivity with a standardized 5-wire cable and M12 socket and enables integration into nearly any fieldbus network. The amplifier supports full-bridge strain gage sensors with a 2.5 V excitation voltage and offers a measuring range of ±9.5 mV, with configurable rated outputs up to ±3.8 mV/V. The digital signals are processed through a 24-bit A/D converter, ensuring that the measurement resolution meets industry standards.

The Model 9210 can handle multi-channel measurement tasks effectively when used with an appropriate IO-Link master, depending on the number of ports the master module provides, making it a versatile component in single-point measurements and a scalable solution for complex monitoring systems.

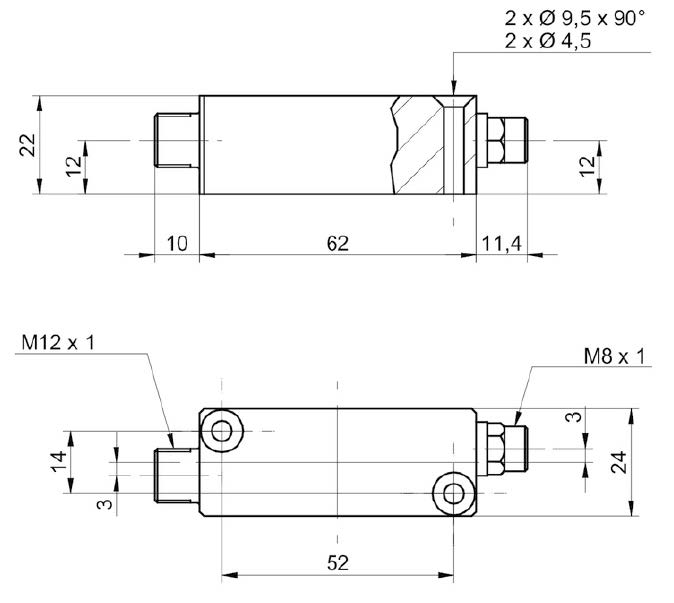

Dimensional drawings (mm)
