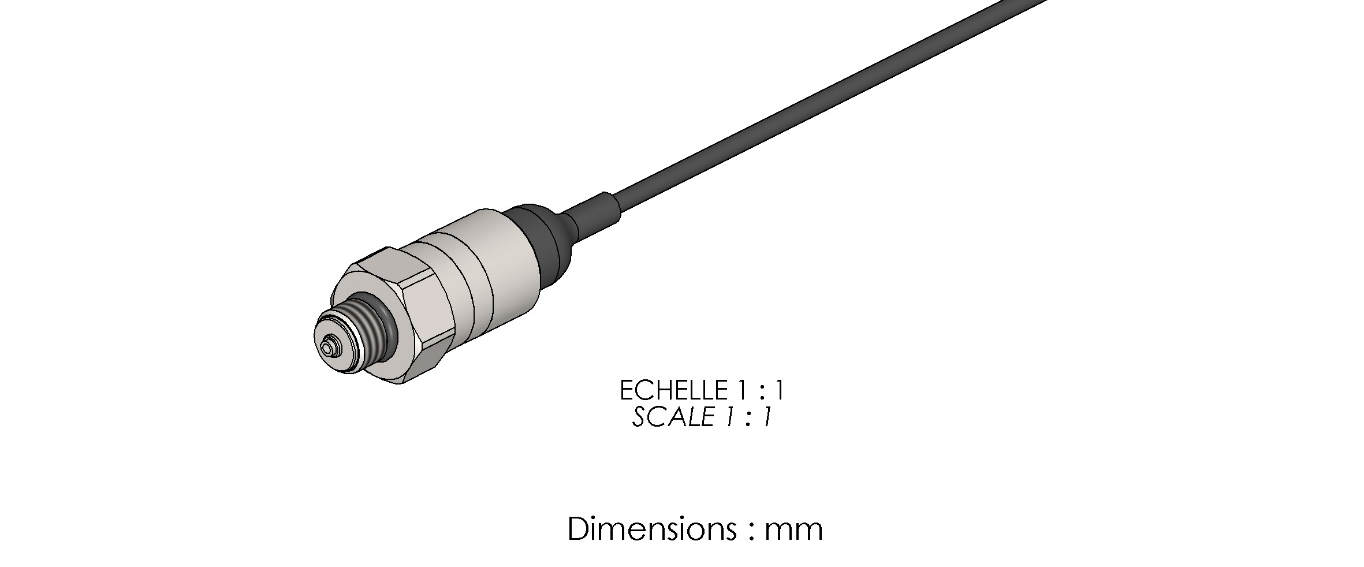

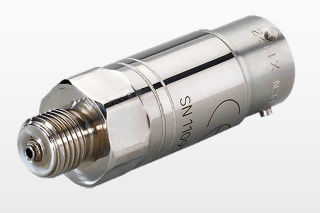

PDC167, Miniature pressure sensor
PDC167 is a high-performance miniature pressure sensor with a 0.5-4.5V output, offering exceptional accuracy and robustness for industrial and aerospace applications.
Features:
- Miniature pressure sensor
- High accuracy : ±0.5% from -55 to 125°C
- Integrated electronics with 0.5-4.5V output
- Operating temperature range: -55°C to +125°C
- Full stainless steel construction
- Suitable for harsh industrial conditions
Manufacturer: EFE Sensors
Quote
Datasheet
Specifications
Models & Accessories
Downloads
PDC167 - Specifications
| Type | Miniature |
| Operational Mode | Absolute |
| Gage | |
| Sealed Gauge | |
| Full Scale | 50 psi |
| 75 psi | |
| 150 psi | |
| 300 psi | |
| 500 psi | |
| 1500 psi | |
| Output | 0.5 - 4.5 V DC |
| Precision | ±0.50 % FS |
| ±1.00 % FS | |
| Excitation | 8 - 32 V DC |
| Min Temperature | -55 °C |
| Max Temperature | 125 °C |
PDC167 - Models & Accessories
Models
| PDC167 | |
| PDC167 S 20bar A 02 03 E 1 | Stainless steel, 20 bar absolute pressure, -55 to +125°C, ±0.5% FS error band. |
| PDC167 S 20bar G 02 03 D 0 | Stainless steel, 20 bar gage pressure, -40 to +125°C, ±1% FS error band. |
| PDC167 S 20bar SG 02 03 E 1 | Stainless steel, 20 bar sealed gage pressure, -55 to +125°C, ±0.5% FS error band. |
| PDC167 S 20bar A 02 03 D 0 | Stainless steel, 20 bar absolute pressure, -40 to +125°C, ±1% FS error band. |
| PDC167 S 20bar G 02 03 E 1 | Stainless steel, 20 bar gage pressure, -55 to +125°C, ±0.5% FS error band. |
| PDC167 S 20bar SG 02 03 D 0 | Stainless steel, 20 bar sealed gage pressure, -40 to +125°C, ±1% FS error band. |
PDC167 - Downloads
PDC167 Datasheet Datasheet |
