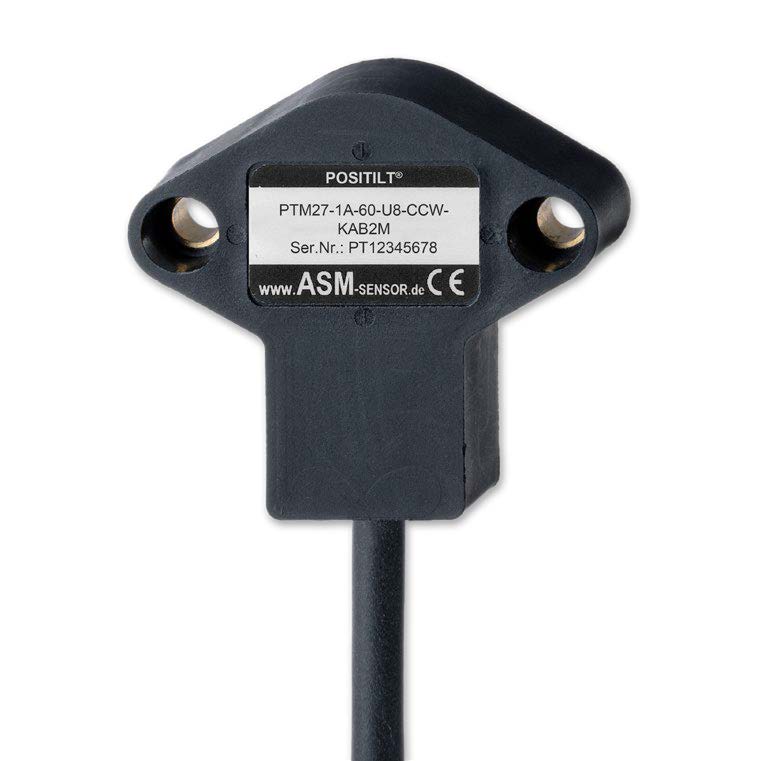

PTM27, High-Precision Inclination Sensor
- High-precision inclination measurement up to ±180°
- Single and dual-axis configurations
- Resolution up to 0.001°
- Robust, compact plastic housing
- Protection class IP67
- Longitudinal water barrier; potted electronics
The PTM27 inclination sensor provides precise angle measurements using MEMS technology, supporting single and dual-axis configurations. It can measure angles up to ±180°, with resolutions up to 0.001°, making it suitable for a range of industrial applications. The sensor's robust plastic housing offers IP67 protection, ensuring durability in challenging environments.
The PTM27 offers various output options, including analog signals (0.5-4.5 V, 0.5-10 V, 4-20 mA) and digital signals via CANopen and SAE J1939 protocols. This flexibility allows integration with different control systems. The sensor is designed to withstand significant shock and vibration and operates within a temperature range of -40°C to +85°C. It features configurable output delay settings from 0.1 to 10 seconds to meet specific application requirements.

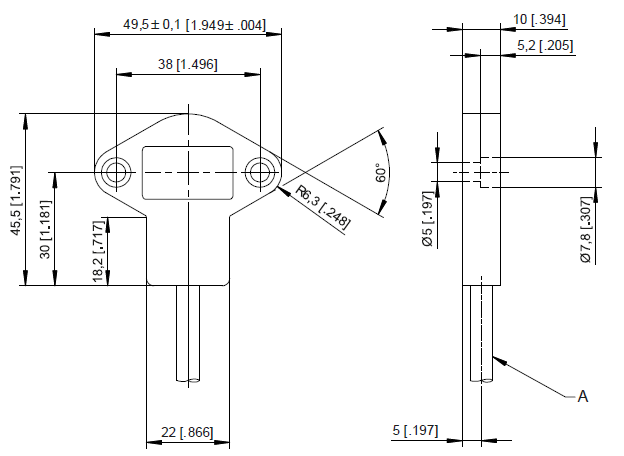

Dimensions in mm [inch]
| Type | Analog |
| Non-Contact | |
| Full Scale | 5 - 180° |
| Output | 0.5 - 4.5 V DC |
| 0.5 - 10 V DC | |
| 4 - 20 mA | |
| CANopen | |
| CAN SAE J1939 | |
| Non-Linearity | ±0.05 % FS |
| ±0.10 % FS | |
| ±0.20 % FS | |
| Excitation | 8 - 36 V DC |
| IP Rating | IP67 |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
| PTM27-1A-180-U8-CW-T1.0-KAB2M | Single axis, 180° range, 0.5-4.5 V output, clockwise signal, 1s delay, 2m cable. |
| PTM27-2B-90-U2-CCW-T0.5-KAB2M | Dual axis, 90° range, 0.5-10 V output, counter-clockwise signal, 0.5s delay, 2m cable. |
| PTM27-1C-45-I1-CW-T2.0-KAB2M | Single axis, 45° range, 4-20 mA output, clockwise signal, 2s delay, 2m cable. |
| PTM27-2A-180-U6-CCW-T0.1-KAB2M | Dual axis, 180° range, 0.5-4.5 V output (5 V supply), counter-clockwise signal, 0.1s delay, 2m cable |
| PTM27-1B-60-U8-CW-T0.2-KAB2M | Single axis, 60° range, 0.5-4.5 V output, clockwise signal, 0.2s delay, 2m cable |
PTM27 High-precision inclination sensor Datasheet |
Installation and operation manual Manual |
PTM27 3D Drawings Drawings |

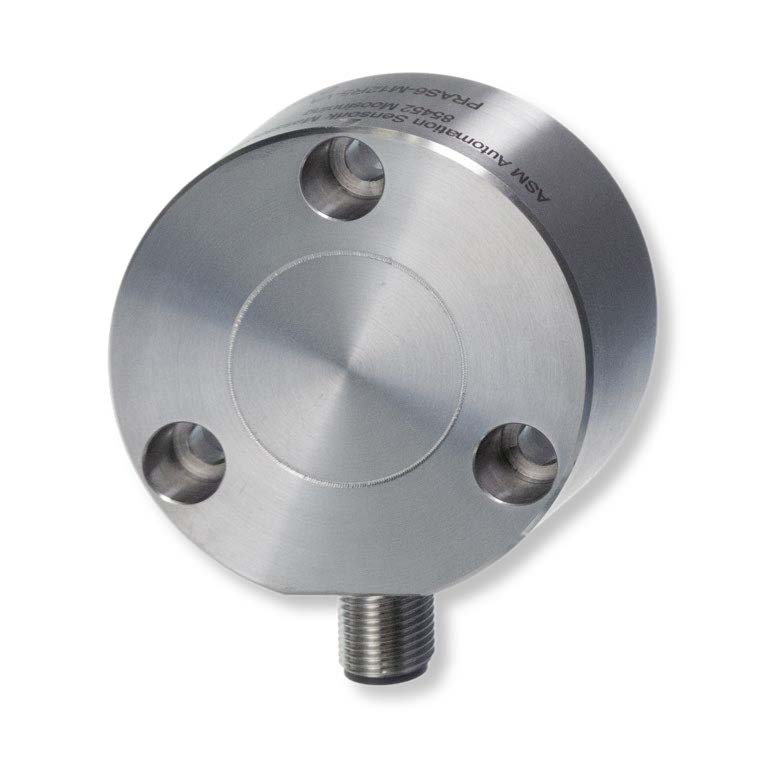

- MEMS Technology Inclination Sensor
- Single Axis Range: ± 180°
- Dual Axis Range: ± 60°
- Stainless Steel Housing
- Connection: 5-pin M12 Socket
- Protection class IP67/IP69
- Wear-Free
| Type | Analog, Non-Contact |
| Full Scale | 15 - 180° |
| Output | 0.5 - 4.5 V DC, 0.5 - 10 V DC, 4 - 20 mA, CANopen, CAN SAE J1939 |
| Resolution | 0.05° |
| Excitation | 8 - 36 V DC |
| IP Rating | IP67, IP69 |
- Contactless Rotary Sensor
- Analog or CANopen Output
- Plastic Housing
- Connection: 2m Integral Cable
- High Shock Resistance
| Type | Analog, Non-Contact |
| Full Scale | 15 - 360° |
| Max Speed | Unlimited |
| Output | 0.5 - 4.5 V DC, 0.5 - 10 V DC, 4 - 20 mA, CANopen |
| Non-Linearity | ±0.50 % FS |
| Resolution | 0.1°, 0.36° |
- Contactless Inclination Sensor
- Single Axis Range: ± 180°
- Dual Axis Range: ± 60°
- Analog or CANopen Output
- Aluminum Housing
- Connection: 5-pin M12 Socket
- Wear-Free
| Type | Analog, Non-Contact |
| Full Scale | 120°, 360° |
| Max Speed | Unlimited |
| Output | 0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA, CANopen, CAN SAE J1939 |
| Non-Linearity | ±0.15 % FS |
| Resolution | 0.05° |
- MEMS Technology Inclination Sensor
- Single Axis Range: ± 180°
- Dual Axis Range: ± 60°
- Analog or CANopen Output
- Stainless Steel Housing
- Connection: 5-pin M12 Socket
- Protection Class IP68 (option)
- Wear-Free
| Type | Analog, Non-Contact |
| Full Scale | 120°, 360° |
| Max Speed | Unlimited |
| Output | 0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA, CANopen, CAN SAE J1939 |
| Non-Linearity | ±0.15 % FS |
| Resolution | 0.05° |
- MEMS Technology Inclination Sensor
- Single Axis Range: ± 180°
- Dual Axis Range: ± 180°
- Analog or CANopen Output
- Plastic Housing
- Connection: Analog: 2m Integral Cable
- Connection: CANopen: 5-pin M12 Socket
- Wear-Free
| Type | Analog, Non-Contact |
| Full Scale | 120°, 360° |
| Max Speed | Unlimited |
| Output | 0 - 5 V DC, 0 - 10 V DC, 4 - 20 mA, CANopen, CAN SAE J1939 |
| Non-Linearity | ±0.15 % FS, ±0.25 % FS, ±0.40 % FS |
| Resolution | 0.05°, 0.1° |
