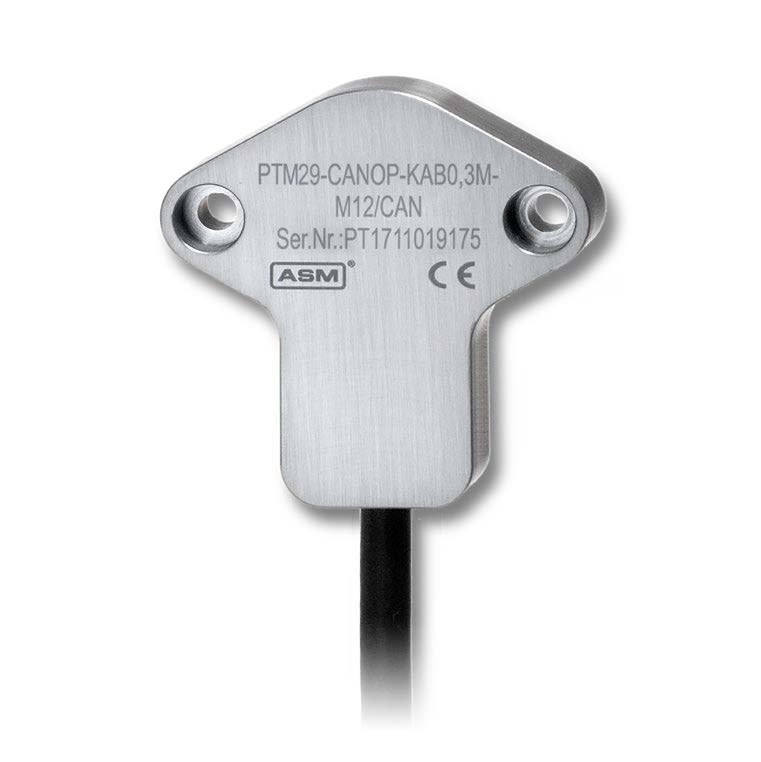

PTM29, Inclination sensor in MEMS technology
The PTM27 is a High-precision inclination sensor with a robust, compact stainless steel housing with a measurement range up to ±180°, and wear-free MEMS technology.
Features:
- High-precision inclination measurement up to ±180°
- Resolution up to 0.001°
- Protection class up to IP69
- Hermetically sealed stainless steel housing
- Longitudinal water barrier; potted electronics
- Wear-free MEMS technology, shock-resistant
Manufacturer: ASM Sensors, Gmbh
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
PTM29 - Description
The PTM29 inclination sensor provides accurate angle measurements with MEMS technology, supporting single and dual-axis configurations. It offers high precision, suitable for various industrial applications. The sensor is housed in stainless steel, hermetically sealed, and rated up to IP69, ensuring reliability in harsh environments.
The PTM29 includes analog and digital output options, such as voltage, current, CANopen, and SAE J1939, enabling integration with diverse control systems. It is built to withstand significant shock and vibration and operates effectively across a wide temperature range. The sensor's output delay is configurable, providing flexibility for different application needs.

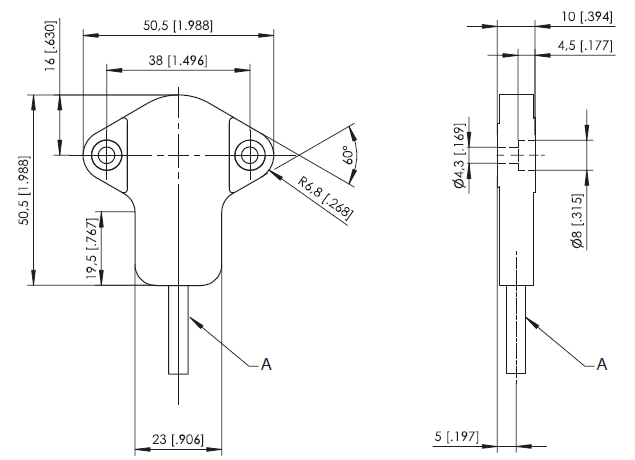

Dimensions in mm [inch].
PTM29 - Specifications
| Type | Analog |
| Non-Contact | |
| Full Scale | 5 - 180° |
| Output | 0 - 10 V DC |
| 0.5 - 4.5 V DC | |
| 4 - 20 mA | |
| CANopen | |
| CAN SAE J1939 | |
| Resolution | 0.001° |
| 0.005° | |
| Excitation | 0 - 36 V DC |
| IP Rating | IP69 |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
PTM29 - Models & Accessories
Models
| PTM29 – CANOP – KAB0,3M – M12/CAN | |
| PTM29 – CANJ1939– KAB0,3M – M12/CAN |
PTM29 - Downloads
PTM29 Inclination sensor in MEMS technology Datasheet |
3D Models for PTM29 Drawings |
Installation and operation manual Manual |
