PTAM4, Inclination Sensor

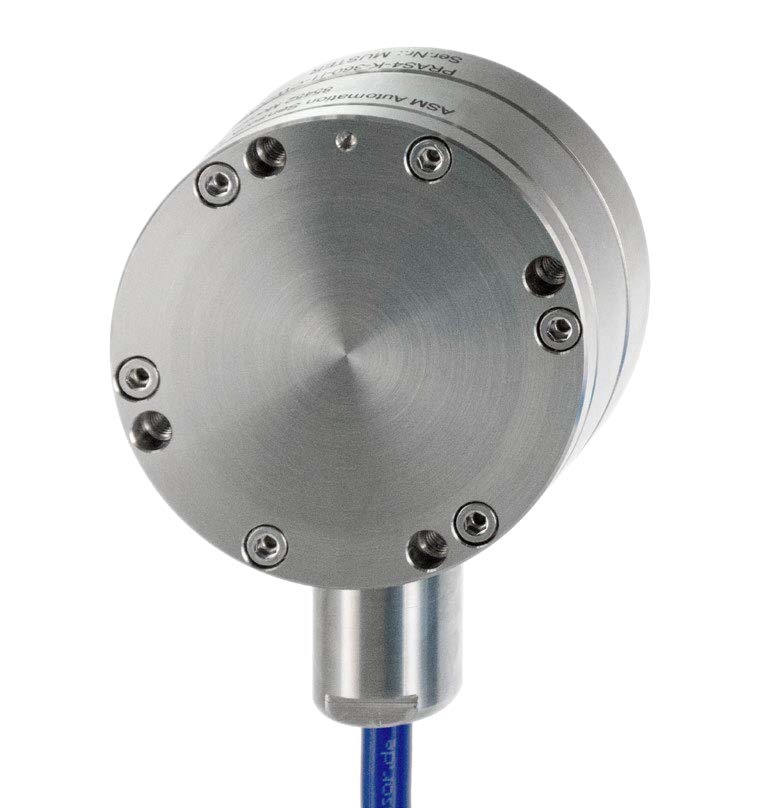

The PTAM4 is an inclination sensor designed for underwater applications. The sensor features robust stainless steel housing, and IP68 protection, and provides linear analog outputs.
Features:
- High-precision inclination measurement up to ±180°
- Single and dual-axis configurations
- Protection class IP68 (10 bar), continuous use
- Analog output, linear
- Stainless steel housing
- Wear-free MEMS technology, shock-resistant
Manufacturer: ASM Sensors, Gmbh
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
PTAM4 - Description

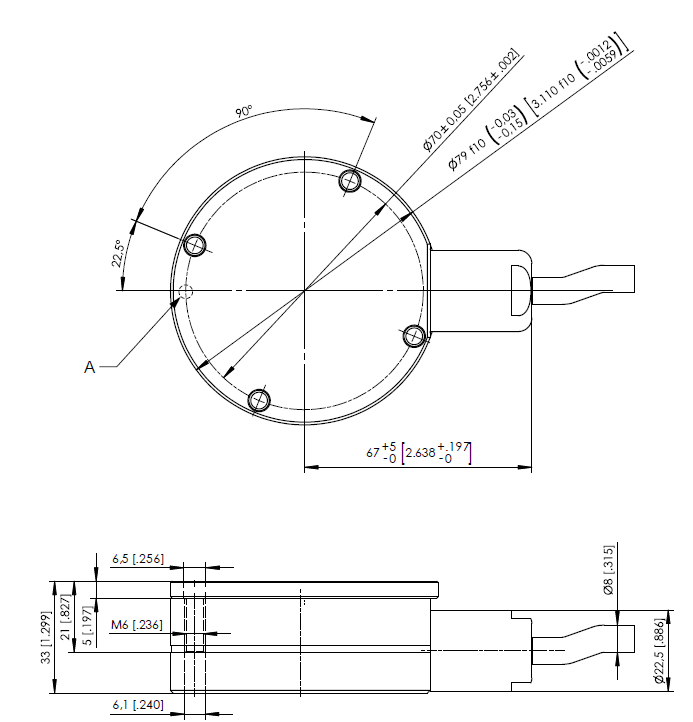

Dimensions in mm [inch]. Weight without cable approx. 1250 g.
PTAM4 - Specifications
| Type | Analog |
| Full Scale | 5 - 180° |
| Output | 0.5 - 4.5 V DC |
| 0.5 - 10 V DC | |
| 4 - 20 mA | |
| Resolution | 0.05° |
| IP Rating | IP68 |
| Min Temperature | -20 °C |
| Max Temperature | 85 °C |
PTAM4 - Downloads
PTAM4 Datasheet |
Installation and operation manual Manual |
