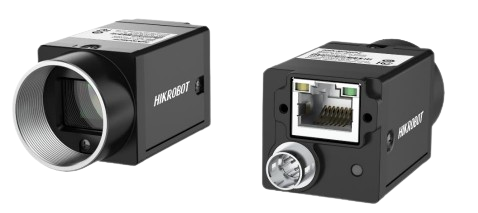

MV-CU004-10G, 0.4 MP Area Scan Camera
MV-CU004-10GM/GC camera adopts Sony® IMX297 sensor to provide high-quality images. It uses GigE interface to transmit non compressed images in real time, and its max. frame rate can reach 126.5 fps in full resolution.
Features:
- Supports auto and manual adjustment of gain, exposure time, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
MV-CU004-10G - Description

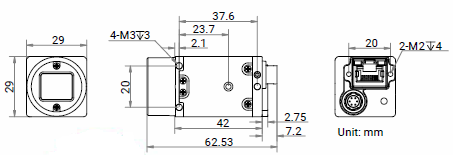

Dimension
MV-CU004-10G - Specifications
| Type | CU Series |
| Resolution | 0.4 MP |
| Frame Rate | 126.5 fps |
| Data interface | Gigabit Ethernet |
| Fast Ethernet | |
| Lens mount | C-Mount |
| Ingress Protection | IP30 |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 60 °C |
| Client software | MVS |
| Third-party software | |
| Power supply | 9 VDC - 24 VDC |
| PoE |
MV-CU004-10G - Models & Accessories
Models
| MV-CU004-10GM | Mono |
| MV-CU004-10GC | Color |
MV-CU004-10G - Downloads
MV-CU004-10GM/GC Datasheet |
