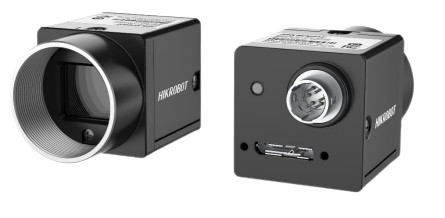

MV-CU020-90UM, 2 MP Area Scan Camera
MV-CU020-90UM camera adopts GMAX4002 CMOS sensor to provide high-quality images. It uses USB3.0 interface to transmit non-compressed images in real time, and its max. frame rate can reach 150.2 fps.
Features:
- Supports auto or manual adjustment of gain,exposure time, manual adjustment of LUT, and Gamma correction, customized ROI, horizontal and vertical reverse image output.
- Adopts compact design for flexible installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-CU020-90UM - Description

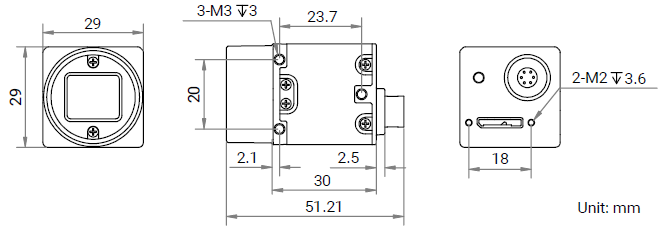

Dimension
MV-CU020-90UM - Specifications
| Type | CU Series |
| Resolution | 2 MP |
| Frame Rate | 150.2 fps |
| Data interface | USB3.0 |
| USB2.0 | |
| Lens mount | C-Mount |
| Ingress Protection | IP30 |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
| Third-party software | |
| Power supply | 9 VDC - 24 VDC |
MV-CU020-90UM - Downloads
MV-CU020-90UM Datasheet Datasheet |
