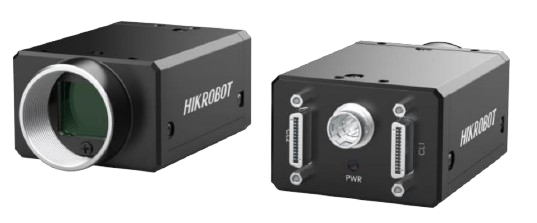

MV-CH040-A0CM, 4 MP Area Scan Camera
MV-CH040-A0CM camera adopts CMOS sensor to provide high quality images. It uses Camera Link interface to transmit non compressed images in real time, and its max. frame rate can reach 180 fps.
Features:
- Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc.
- Supports customized ROI and horizontal and vertical reverse image output, hardware trigger, software trigger, free run, and supports triggering via Camera Link frame grabber.
- Supports Base, Medium, Full, 80-bit configuration mode.
- Compatible with Camera Link V2.0 Protocol and GenlCam Standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
MV-CH040-A0CM - Description

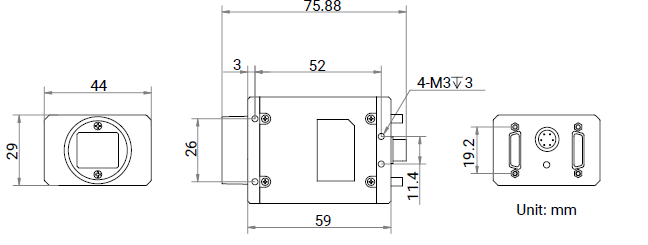

Dimension
MV-CH040-A0CM - Specifications
| Type | CH Series |
| Resolution | 4 MP |
| Frame Rate | 180 fps |
| Data interface | Camera Link |
| Lens mount | C-Mount |
| Ingress Protection | IP40 |
| Min Working Temperature | -10 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
| frame grabber | |
| Power supply | 9 VDC - 24 VDC |
MV-CH040-A0CM - Downloads
MV-CH040-A0CM Datasheet Datasheet |
