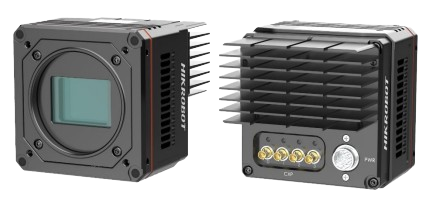

MV-CH210-90Y, 21 MP Area Scan Camera
MV-CH210-90YM/YC camera adopts Gsprint 4521 sensor to provide high-quality image. It uses CXP-12 interface to transmit non compressed images in real time, and its max. frame rate can reach 222 fps in full resolution.
Features:
- Resolution of 5120 × 4096, pixel size of 4.5 µm × 4.5 µm.
- Adopts global shutter CMOS to provide high dynamic range, SNR, high-quality images, and CXP-12 interface to transmit data.
- Supports LSC sequencer polling function.
- Low power consumption without fans.
- Compatible with CoaXPress Protocol and GenlCam Standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
MV-CH210-90Y - Description

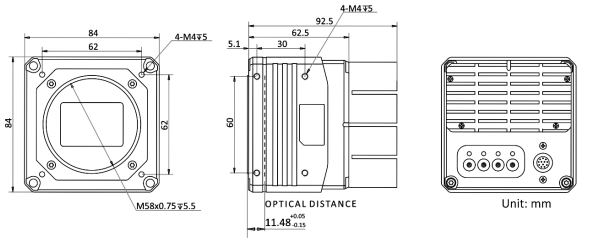

Dimension
MV-CH210-90Y - Specifications
| Type | CH Series |
| Resolution | 21 MP |
| Frame Rate | 222 fps |
| Data interface | CoaXPress |
| Lens mount | flange back |
| M58 × 0.75 | |
| Ingress Protection | IP40 |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
| frame grabber | |
| Power supply | 12 VDC to 24 VDC |
| PoCXP support | |
| Certification | CE |
| KC | |
| FCC | |
| RoHS |
MV-CH210-90Y - Models & Accessories
Models
| MV-CH210-90YM | Mono |
| MV-CH210-90YC | Color |
| MV-CH210-90YM-M58S-NN | Mono |
| MV-CH210-90YC-M58S-NN | Color |
MV-CH210-90Y - Downloads
MV-CH210-90YM/YC Datasheet |
