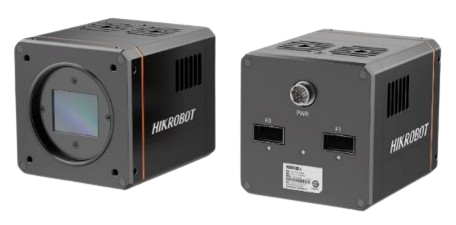

MV-CH210-90Q2M, 21MP Area Scan Camera
MV-CH210-90Q2M camera adopts Gpixel Gsprint4521 CMOS sensor to provide high-quality images. It is equipped with two QSFP+ ports to transmit non compressed data in real time, and its max. frame rate can reach 541 fps in full resolution.
Features:
- Resolution of 5120 × 4096, pixel size of 4.5 μm.
- Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
- Supports ISP functions such as Binning, multi-group polling for LSC and data transmission through two 50 Gbps fiber ports.
- Features an M58 mount; can be adapted to F-mount lenses via an adapter ring.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
MV-CH210-90Q2M - Description
Dimension
MV-CH210-90Q2M - Specifications
| Type | CH Series |
| Resolution | 21 MP |
| Frame Rate | 541 fps |
| Data interface | QSFP+ |
| Lens mount | M58 × 0.75 |
| Ingress Protection | IP40 |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 40 °C |
| Client software | MVS |
| Power supply | 12 VDC to 24 VDC |
MV-CH210-90Q2M - Downloads
MV-CH210-90Q2M Datasheet |
