MV-CH250-20X, 25 MP Area Scan Camera
MV-CH250-20XM/XC camera adopts OnSemi Python25K sensor to provide high-quality image. It uses CXP-6 interface to transmit noncompressed images in real time, and its max. frame rate can reach 79.9 fps in full resolution.
Features:
- Resolution of 5120 × 5120, pixel size of 4.5 µm × 4.5 µm.
- Supports binning, reversing image, etc.
- Adopts global shutter CMOS to provide high dynamic range, SNR, high-quality images and CXP-6 interface to transmit data.
- Compatible with CoaXPress Protocol and GenlCam Standard, and third-party software based on the protocol and standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
MV-CH250-20X - Description

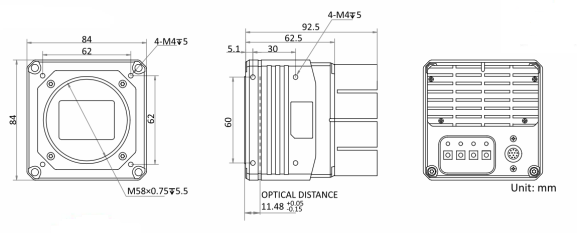

Dimension
MV-CH250-20X - Specifications
| Type | CH Series |
| Resolution | 25 MP |
| Frame Rate | 79.9 fps |
| Data interface | CoaXPress |
| Lens mount | M58-mount |
| optical focal | |
| Ingress Protection | IP40 |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
| frame grabber | |
| Power supply | 9 VDC - 24 VDC |
| PoCXP support |
MV-CH250-20X - Models & Accessories
Models
| MV-CH250-20XM | Mono |
| MV-CH250-20XC | Color |
MV-CH250-20X - Downloads
MV-CH250-20XM/XC Datasheet |
MV-CH250-20X - Similar Products
- Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
- Adopts global shutter CMOS sensor providing wide dynamic range and high-quality image.
- Supports configuration modes of Full and 80-bit via the Camera Link interface.
- Adopts compact design with mounting holes for flexible mounting.
| Type | CH Series |
| Resolution | 25 MP |
| Frame Rate | 31.3 fps |
| Data interface | Camera Link |
| Lens mount | M58-mount, optical focal |
| Ingress Protection | IP40 |
