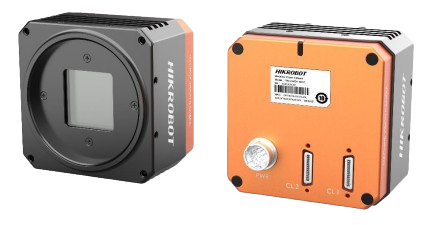

MV-CH250-20CM, 25 MP Area Scan Camera
MV-CH250-20CM camera adopts OnSemi Python25K sensor and Camera Link interface to provide high quality and non-compressed images in real time. It max. frame rate reaches up to 31.3 fps in full resolution.
Features:
- Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
- Adopts global shutter CMOS sensor providing wide dynamic range and high-quality image.
- Supports configuration modes of Full and 80-bit via the Camera Link interface.
- Adopts compact design with mounting holes for flexible mounting.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-CH250-20CM - Description

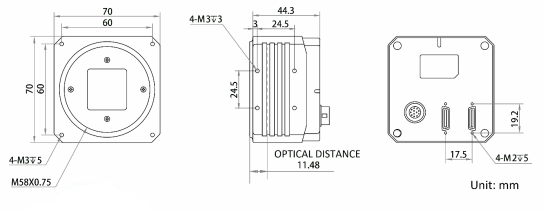

Dimension
MV-CH250-20CM - Specifications
| Type | CH Series |
| Resolution | 25 MP |
| Frame Rate | 31.3 fps |
| Data interface | Camera Link |
| Lens mount | M58-mount |
| optical focal | |
| Ingress Protection | IP40 |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
| frame grabber | |
| Power supply | 9 VDC - 24 VDC |
MV-CH250-20CM - Downloads
MV-CH250-20CM Datasheet |
