MV-CH250-60TM, 25 MP Area Scan Camera
MV-CH250-60TM camera adopts CMOS sensor to provide high quality images with high resolution and low noise. It uses 10 GigE interface to transmit non compressed data in real time, and its max. frame rate can reach 31.7 fps in full resolution.
Features:
- Resolution of 5120 × 5120, and pixel size of 4.5 μm × 4.5 μm.
- Supports auto or manual adjustment of exposure time, and manual adjustment of gain, Gamma correction, LUT, etc.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-CH250-60TM - Description

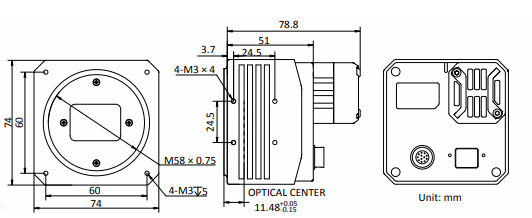

Dimension
MV-CH250-60TM - Specifications
| Type | CH Series |
| Resolution | 25 MP |
| Frame Rate | 31.7 fps |
| Data interface | Gigabit Ethernet |
| Lens mount | flange focal |
| M58-mount | |
| Ingress Protection | IP40 |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
| Third-party software | |
| Power supply | 12 VDC to 24 VDC |
MV-CH250-60TM - Downloads
MV-CH250-60TM Datasheet |
MV-CH250-60TM - Similar Products
- Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
- Adopts GigE interface providing max. transmission distance of 100 meters without relay, local memory for burst transmission and retransmission.
- Compact design with mounting holes on the up and bottom panels for flexible mounting.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
| Type | CH Series |
| Resolution | 25 MP |
| Frame Rate | 4.64 fps |
| Data interface | Gigabit Ethernet, Fast Ethernet |
| Lens mount | F-mount, M58-mount, optical focal |
| Ingress Protection | IP40 |
- Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
- Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
- Supports auto or manual adjustment for gain, exposure time, and manual adjustment for Look-Up table (LUT), Gamma correction, etc.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, third-party software based on protocols.
| Type | CH Series |
| Resolution | 25 MP |
| Frame Rate | 40 fps |
| Data interface | Gigabit Ethernet |
| Lens mount | F-mount, M58-mount, optical focal |
| Ingress Protection | IP40 |
- Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.
- Adopts 10 GigE interface providing maximum transmission distance of 100 meters.
- Supports adjustment for exposure time, gain, Look-Up Table (LUT), Gamma correction, etc.
- Mounting holes on panels for flexible installation.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
| Type | CH Series |
| Resolution | 25 MP |
| Frame Rate | 41.5 fps |
| Data interface | Gigabit Ethernet |
| Lens mount | C-Mount, M58-mount |
| Ingress Protection | IP40 |
- Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
- Adopts global shutter CMOS sensor to provide high dynamic range, high quality image and CXP-12 interface to transmit data.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
| Type | CH Series |
| Resolution | 25 MP |
| Frame Rate | 150 fps |
| Data interface | CoaXPress |
| Lens mount | C-Mount, flange focal, M58 × 0.75 |
| Ingress Protection | IP40 |
- Resolution of 11276 × 9200, pixel size of 3.2 μm × 3.2 μm.
- Supports auto or manual adjustment of exposure time, white balance, and manual adjustment of gain, Gamma correction, LUT, etc.
- Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay and installation holes for flexible installation.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
| Type | CH Series |
| Resolution | 103 MP |
| Frame Rate | 11.6 fps |
| Data interface | Gigabit Ethernet |
| Lens mount | flange focal, M58 × 0.75 |
| Ingress Protection | IP40 |
