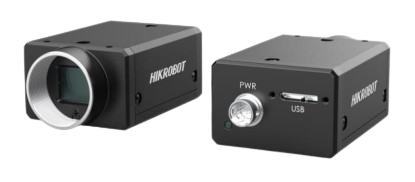

MV-CH250-90U, 25 MP Area Scan Camera
MV-CH250-90UM/UC camera adopts Gpixel GMAX0505 sensor to provide high-quality images. It uses USB3.0 interface to transmit non-compressed images in real time, and its max. frame rate can reach 14 fps in full resolution.
Features:
- Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
- Supports LSC correction, binning, image reverse, hardware trigger, software trigger, free run and etc.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
MV-CH250-90U - Description

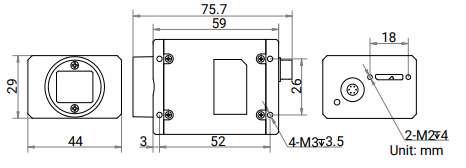

Dimension
MV-CH250-90U - Specifications
| Type | CH Series |
| Resolution | 25 MP |
| Frame Rate | 14 fps |
| Data interface | USB3.0 |
| USB2.0 | |
| Lens mount | C-Mount |
| Ingress Protection | IP30 |
| Min Working Temperature | -10 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
| Third-party software | |
| Power supply | 12 VDC to 24 VDC |
| USB3.0 | |
| Certification | CE |
| KC | |
| FCC | |
| RoHS |
MV-CH250-90U - Models & Accessories
Models
| MV-CH250-90UM | Mono |
| MV-CH250-90UC | Color |
MV-CH250-90U - Downloads
MV-CH250-90UM/UC Datasheet |
