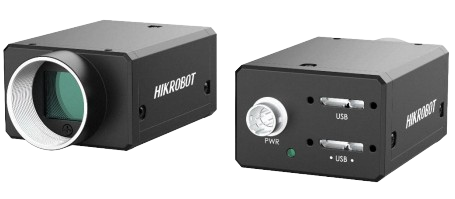

MV-CH250-90V, 25 MP Area Scan Camera
MV-CH250-90VM/VC camera adopts Gpixel GMAX0505 CMOS sensor to provide high-quality images. It uses dual USB 3.0 interfaces to transmit images in real time, and its max. frame rate can reach 30 fps in full resolution.
Features:
- Supports manual adjustment of gain, LUT, Gamma correction, etc.
- Adopts dual USB 3.0 interfaces to transmit data and compact design for small spatial installation.
- Supports hardware trigger, software trigger, free run and flexible installation via the installation holes.
- Compatible GenlCam Standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
MV-CH250-90V - Description

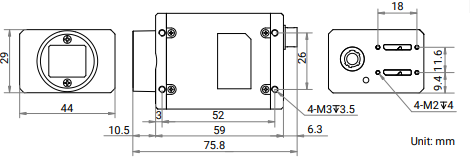

Dimension
MV-CH250-90V - Specifications
| Type | CH Series |
| Resolution | 25 MP |
| Frame Rate | 30 fps |
| Data interface | USB3.0 |
| USB2.0 | |
| Lens mount | C-Mount |
| Ingress Protection | IP40 |
| Min Working Temperature | -10 °C |
| Max Working Temperature | 40 °C |
| Client software | MVS |
| Power supply | 9 VDC - 24 VDC |
| USB3.0 |
MV-CH250-90V - Models & Accessories
Models
| MV-CH250-90VM | Mono |
| MV-CH250-90VC | Color |
MV-CH250-90V - Downloads
MV-CH250-90VM/VC Datasheet |
