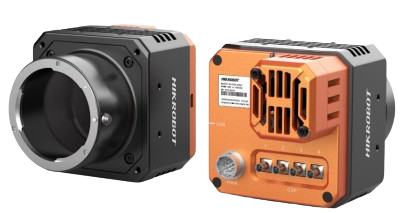

MV-CH650-90X, 65 MP Area Scan Camera
MV-CH650-90XM/XC camera adopts Gpixel GMAX3265 sensor and CXP-6 interface to provide high-quality and non-compressed images in real time. Its max. frame rate reaches up to 31.5 fps in full resolution.
Features:
- Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, Base, Medium, Full, 80-bit configuration mode, etc.
- Supports customized ROI and horizontal, vertical reverse image output, hardware trigger, software trigger, free run, and supports triggering via Camera Link frame grabber.
- Compatible with Camera Link V2.0 Protocol and GenlCam Standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
MV-CH650-90X - Description

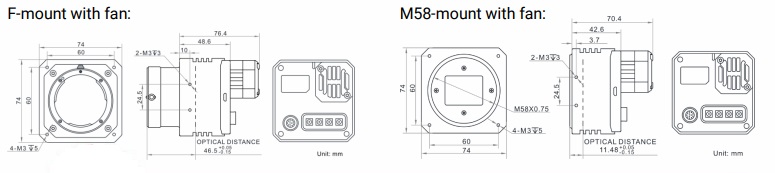

Dimension
MV-CH650-90X - Specifications
| Type | CH Series |
| Resolution | 65 MP |
| Frame Rate | 31.5 fps |
| Data interface | CoaXPress |
| Lens mount | F-mount |
| M58-mount | |
| Ingress Protection | IP40 |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 50 °C |
| Client software | frame grabber |
| Power supply | 24 VDC |
| Certification | CE |
| KC | |
| FCC | |
| RoHS |
MV-CH650-90X - Models & Accessories
Models
| MV-CH650-90XMM58S-NF | Mono |
| MV-CH650-90XM-F-NF | Mono |
| MV-CH650-90XCM58S-NF | Color |
| MV-CH650-90XC-F-NF | Color |
MV-CH650-90X - Downloads
MV-CH650-90XM/XC Datasheet |
MV-CH650-90X - Similar Products
- Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images and CXP-12 interface to transmit data.
- Supports LSC sequencer polling function and the flat field correction.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
| Type | CH Series |
| Resolution | 65 MP |
| Frame Rate | 71 fps |
| Data interface | CoaXPress |
| Lens mount | M58 × 0.75 |
| Ingress Protection | IP40 |
- Resolution of 28416 × 21280, pixel size of 3.76 μm × 3.76 μm.
- Adopts ISP algorithm to improve image quality, rolling shutter CMOS sensor to provide high dynamic range and CXP-6 interface to transmit data.
- Supports FFC correction, LSC correction, and 16-bit ADC output.
- Compatible with CoaXPress Protocol and GenlCam Standard, and third-party software based on the protocol and standard.
| Type | CH Series |
| Resolution | 604 MP |
| Frame Rate | 1.38 fps, 1.45 fps |
| Data interface | CoaXPress |
| Lens mount | M72-mount,, optical focal |
| Ingress Protection | IP40 |
- Resolution of 14208 × 10640, pixel size of 3.76 µm × 3.76 µm.
- Adopts rolling shutter CMOS to provide high dynamic range, SNR, and high-quality images.
- Adopts CXP-6 interface to transmit data.
- Supports the flat field correction.
- Compatible with CoaXPress Protocol, GenlCam Standard, third-party software based on the protocol and standard.
| Type | CH Series |
| Resolution | 151 MP |
| Frame Rate | 6.2 fps |
| Data interface | CoaXPress |
| Lens mount | M72 x 0.75, optical focal |
| Ingress Protection | IP40 |
