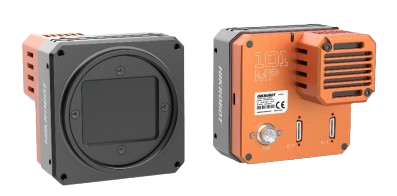

MV-CH1010-10CM, 101 MP Link Area Scan Camera
MV-CH1010-10CM camera adopts Sony® IMX461 sensor to provide high-quality images. It uses Camera Link interface to transmit non-compressed images in real time, and its max. frame rate can reach 8.1 fps in full resolution.
Features:
- Supports auto and manual adjustments of gain and exposure time, with manual adjustment of LUT and Gamma correction.
- Supports 16-bit ADC output for high acquisition accuracy and wide dynamic range.
- Available with a fan or TEC to accommodate different working temperature requirements.
- Supports various configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
- Compatible with Camera Link V2.0 Protocol, GenICam Standard, and frame grabber software meeting GenICam Protocol.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
MV-CH1010-10CM - Description

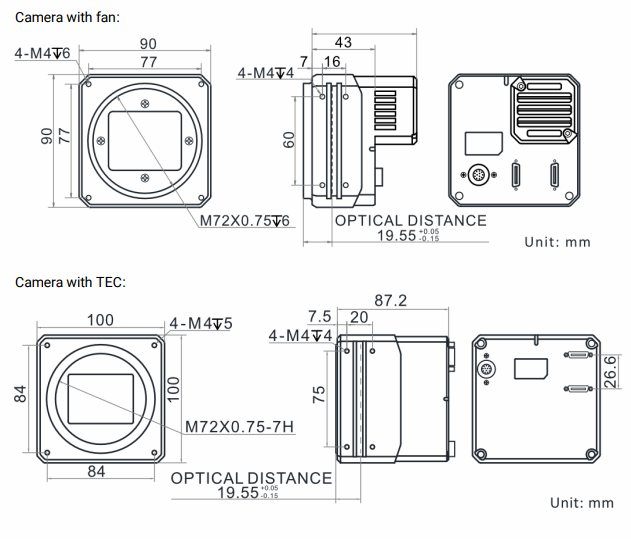

Dimension
MV-CH1010-10CM - Specifications
| Type | CH Series |
| Resolution | 101 MP |
| Frame Rate | 8.1 fps |
| Data interface | Camera Link |
| Lens mount | flange focal |
| M72 x 0.75 | |
| Ingress Protection | IP40 |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
| frame grabber | |
| Power supply | 12 VDC to 24 VDC |
| 24 VDC | |
| Certification | CE |
| KC | |
| FCC | |
| RoHS |
MV-CH1010-10CM - Models & Accessories
Models
| MV-CH1010-10CM-M72-NF | Mono camera with fan |
| MV-CH1010-10CM-M72-TF | Mono camera with TEC |
MV-CH1010-10CM - Downloads
MV-CH1010-10CM Datasheet |
