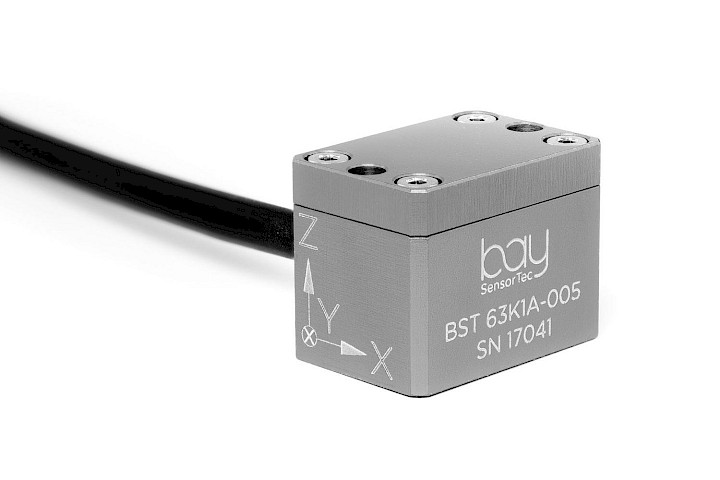

BST 63K1, Capacitive Triaxial Accelerometer
- Capacitive Accelerometer
- Triaxial
- Measuring Range: from 2 to 200g
- Sensitivity: 20mV/g to 2000mV/g
- Frequency Range (5%): 0 - 2500 Hz
- Supply voltage: 5V to 28V DC unregulated
- Shock Limit: 5000g
- IP64 Protection
- Anodized Aluminum Housing
- Option: Stainless Steel
- DC Response (0Hz) to 2500 Hz
The BST 63K1 is a high-performance capacitive triaxial accelerometer that provides an excellent signal-to-noise ratio for precise low-amplitude measurements. It offers a DC response from 0Hz up to 2500Hz, ensuring accurate data across a wide frequency range. The sensor is housed in durable anodized aluminum and can withstand shocks up to 5000g, making it ideal for demanding environments.
Operating with an unregulated voltage range of 5 to 28 VDC, it easily integrates into various systems. The sensor’s 6-meter rugged, flexible cable simplifies installation in challenging setups, and its mounting can be secured with two screws. Optional features like TEDS or Dallas ID modules further enhance its adaptability. Calibration is available to guarantee accurate and reliable performance in critical applications.

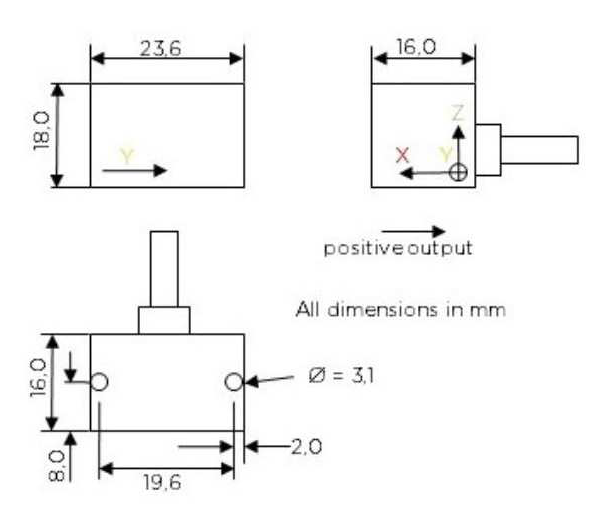

Dimensions
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 2 g |
| 5 g | |
| 10 g | |
| 25 g | |
| 50 g | |
| 100 g | |
| 200 g | |
| Excitation | 5 - 28 V DC |
| Mounting | M3 |
| Min Temperature | -50 °C |
| Max Temperature | 120 °C |
| Ingress Protection | IP64 |
- Test Flight
- Comfort
- Automotive
- Truck and Buses
- Train
- Wind Energy
BST_63K1 Datasheet |
- Capacitive Accelerometer
- triaxial
- Measuring Range: from 2 to 200g
- Sensitivity: 20mV/g to 2000mV/g
- Frequency Range (5%): 0 - 2500 Hz
- Supply voltage: 5V to 28V DC unregulated
- Shock Limit: 5000g
- Protection Class IP67
| Type | DC Response |
| # of Axis | 3 |
| Full Scale | 2 g, 5 g, 10 g, 25 g, 50 g, 100 g, 200 g |
| Excitation | 5 - 28 V DC |
| Mounting | M3 |
| Min Temperature | -50 °C |
