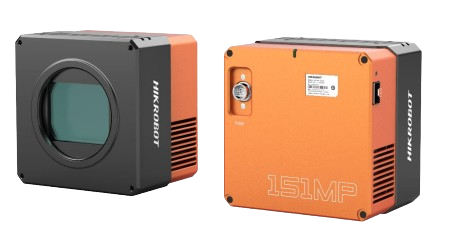

MV-CH1510-10F, 151 MP Area Scan Camera
MV-CH1510-10FM/FC camera adopts Sony® IMX411 sensor to provide high-quality images. It uses 10 GigE interface to transmit non-compressed data in real time, and its max. frame rate can reach 6.2 fps in full resolution.
Features:
- Supports Binning, LSC Sequencer, FFC and other ISP functions.
- Adopts 10GigE over Fiber interface to transmit data, and max. transmission distance reaches 300 m.
- Adopts TEC technology to reduce sensor temperature and ensure high-quality images under long-time exposure condition.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
MV-CH1510-10F - Description

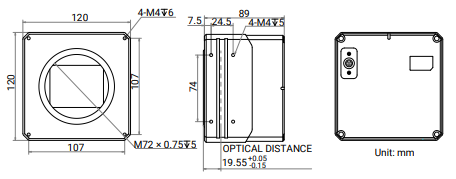

Dimension
MV-CH1510-10F - Specifications
| Type | CH Series |
| Resolution | 151 MP |
| Frame Rate | 6.2 fps |
| Data interface | 10 Gigabit Ethernet |
| Lens mount | flange back |
| M72 x 0.75 | |
| Ingress Protection | IP40 |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
| Third-party software | |
| Power supply | 24 VDC |
| Certification | CE |
| KC | |
| FCC | |
| RoHS |
MV-CH1510-10F - Models & Accessories
Models
| MV-CH1510-10FM | Mono |
| MV-CH1510-10FC | Color |
| MV-CH1510-10FM-M72-TF | Mono |
| MV-CH1510-10FC-M72-TF | Color |
MV-CH1510-10F - Downloads
MV-CH1510-10FM/FC Datasheet |

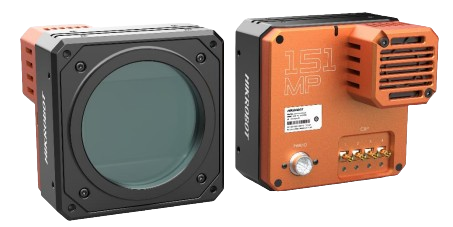

MV-CH1510-10F - Similar Products
- Resolution of 14208 × 10640, pixel size of 3.76 µm × 3.76 µm.
- Adopts rolling shutter CMOS to provide high dynamic range, SNR, and high-quality images.
- Adopts CXP-6 interface to transmit data.
- Supports the flat field correction.
- Compatible with CoaXPress Protocol, GenlCam Standard, third-party software based on the protocol and standard.
| Type | CH Series |
| Resolution | 151 MP |
| Frame Rate | 6.2 fps |
| Data interface | CoaXPress |
| Lens mount | M72 x 0.75, optical focal |
| Ingress Protection | IP40 |
