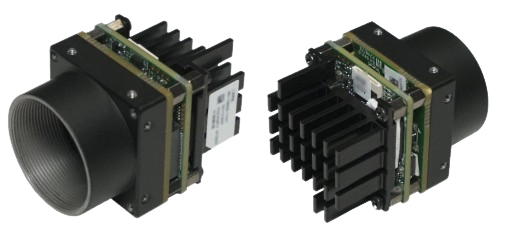

MV-CB050-11UC-C, 5.0 MP Board Level Camera
MV-CB050-11UC-C camera adopts Sony® IMX264 sensor to provide
high-quality images. It uses USB3.0 interface to transmit non compressed images in real time, and its max. frame rate can reach 60 fps in full resolution.
Features:
- USB3.0 supports FPC connection to meet limited spatial requirements.
- Supports senor, mainboard separation for complex spatial requirements and auto or manual adjustment for gain, exposure time, white balance, LUT, Gamma correction, etc.
- Adopts image interpolation algorithm for color reproduction.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on protocol and standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-CB050-11UC-C - Description
Dimension
MV-CB050-11UC-C - Specifications
| Type | CB Series |
| Resolution | 5.0 MP |
| Frame Rate | 60 fps |
| Data interface | USB3.0 |
| USB2.0 | |
| Lens mount | C-Mount |
| Min Working Temperature | 0 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
| Third-party software | |
| Power supply | 5 VDC |
MV-CB050-11UC-C - Downloads
MV-CB050-11UC-C Datasheet |
