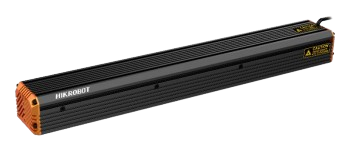

MV-LLDS-H-100-40-W, Standard Bar Light
MV-LLDS-H series standard bar light adopts high-quality LEDs to provide stable and sufficient lighting, which is available in models with various length sizes with flexible installation.
Features:
- The irradiation direction and angle can be adjusted freely.
- Support multi-side installation.
- High-quality LED particles, stable lighting and high brightness.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-LLDS-H-100-40-W - Description

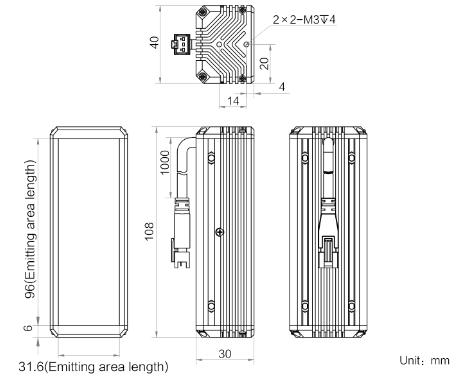

Dimension
MV-LLDS-H-100-40-W - Specifications
| Type | Bar Lighting |
| Color | White |
| LED Rows | 6 |
| Power Consumption | 10.6 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
MV-LLDS-H-100-40-W - Downloads
MV-LLDS-H-100-40-W Datasheet |
MV-LLDS-H-100-40-W - Similar Products
- The irradiation direction and angle can be adjusted freely.
- Support multi-side installation.
- High-quality LED particles, stable lighting and high brightness.
| Color | White |
| LED Rows | 6 |
| Power Consumption | 41.9 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
- The irradiation direction and angle can be adjusted freely.
- Support multi-side installation.
- High-quality LED particles, stable lighting and high brightness.
| Color | White |
| LED Rows | 6 |
| Power Consumption | 73.2 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
| Color | White |
| LED Rows | 6 |
| Power Consumption | 34.3 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
- The irradiation direction and angle can be adjusted freely.
- Support multi-side installation.
- High-quality LED particles, stable lighting and high brightness.
| Type | Bar Lighting |
| Color | White |
| LED Rows | 6 |
| Power Consumption | 116.5 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
- The irradiation direction and angle can be adjusted freely.
- Support multi-side installation.
- High-quality LED particles, stable lighting and high brightness.
| Type | Bar Lighting |
| Color | White |
| LED Rows | 6 |
| Power Consumption | 116.4 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
