MV-LTDS-H-1200-W, Linescan-Type Lighting
MV-LTDS-H linescan-type lighting series adopts high brightness and high power LED, combination of structural heat dissipation and fan heat dissipation, provide good heat dissipation and working life, flexible installation, efficient focusing.
Features:
- The high-power LED light bead is designed with a high condensing structure, and the illumination on the surface of the lighting can reach 1 million lux.
- The enclosure is equipped with a fan for heat dissipation, which improves the working life of the lighting.
- Multi-side for flexible installation.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Applications
Downloads
Similar Products
MV-LTDS-H-1200-W - Description

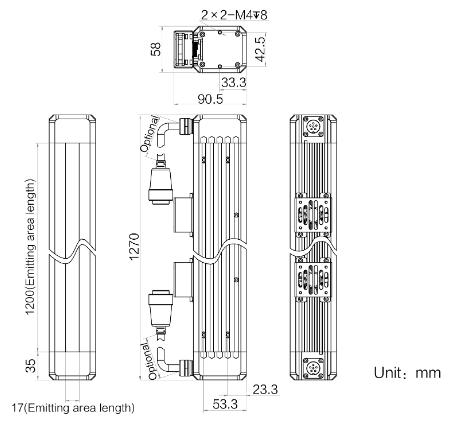

Dimension
MV-LTDS-H-1200-W - Specifications
| Color | White |
| LED Rows | 1 |
| Power Consumption | 504 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | Dual-channel 19M-8H |
MV-LTDS-H-1200-W - Applications
MV-LTDS-H-1200-W - Downloads
MV-LTDS-H-1200-W Datasheet |
