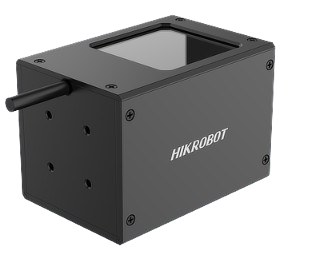

MV-LCDS-H-60-60-W, Standard Coaxial Lighting
MV-LCDS-H standard coaxial lighting, provides uniform illumination in the same
direction as the camera, high brightness coaxial lighting, to ensure clear imaging of
objects.
Features:
- Special spectroscope design, improve lighting efficiency.
- Efficient heat dissipation, extended service life.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-LCDS-H-60-60-W - Description

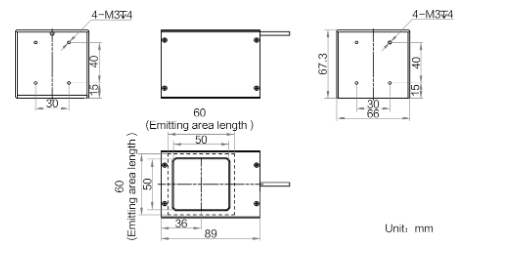

Dimension
MV-LCDS-H-60-60-W - Specifications
| Type | Coaxial Lighting |
| Color | White |
| Power Consumption | 9.6 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
MV-LCDS-H-60-60-W - Downloads
MV-LCDS-H-60-60-W Datasheet |
MV-LCDS-H-60-60-W - Similar Products
- Special spectroscope design, improve lighting efficiency.
- Efficient heat dissipation, extended service life.
| Type | Coaxial Lighting |
| Color | White |
| Power Consumption | 10.8 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
- Special spectroscope design, improve lighting efficiency.
- Efficient heat dissipation, extended service life.
| Type | Coaxial Lighting |
| Color | White |
| Power Consumption | 5.5 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
- Special spectroscope design, improve lighting efficiency.
- Efficient heat dissipation, extended service life.
| Type | Coaxial Lighting |
| Color | White |
| Power Consumption | 3.3 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
- Special spectroscope design, improve lighting efficiency.
- Efficient heat dissipation, extended service life.
| Type | Coaxial Lighting |
| Color | Infrared |
| Power Consumption | 12.6 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
- Special spectroscope design, improve lighting efficiency.
- Efficient heat dissipation, extended service life.
| Type | Coaxial Lighting |
| Color | Red |
| Power Consumption | 6.7 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
