MV-LRDS-H-200-0-W2, Standard Ring Light
MV-LRDS-H (V2.0) standard ring light adopts high-quality LEDs and good heat dissipation design to provide sufficient, stable, and efficient lighting, which is available in models with various outer dimensions and irradiation angles.
Features:
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-LRDS-H-200-0-W2 - Description

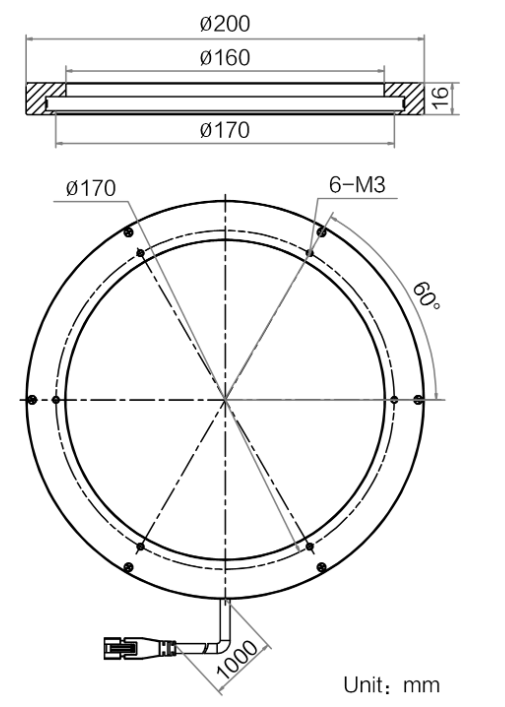

Dimension
MV-LRDS-H-200-0-W2 - Specifications
| Color | White |
| LED Rows | 1 |
| Power Consumption | 20 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
MV-LRDS-H-200-0-W2 - Downloads
MV-LRDS-H-200-0-W2 Datasheet |
MV-LRDS-H-200-0-W2 - Similar Products
- High uniformity illumination.
- Various sizes of outer diameter for selection
- Ideal for character recognition, color detection, and defect inspection
- Natural cooling system, no fans required
- 24 VDC input with SMR-03V-B connector
| Color | White |
| LED Rows | 1 |
| Power Consumption | 8.7 W, 13.1 W, 17.4 W, 21.8 W, 26.2 W, 30.5 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
| Type | Ring Lighting |
| Color | White |
| LED Rows | 1 |
| Power Consumption | 5.3 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
| Type | Ring Lighting |
| Color | White |
| LED Rows | 1 |
| Power Consumption | 8.6 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
| Color | White |
| LED Rows | 1 |
| Power Consumption | 10.2 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
| Type | Ring Lighting |
| Color | White |
| LED Rows | 1 |
| Power Consumption | 6.9 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
