MV-LRDS-H-200-90-R2, Standard Ring Light
MV-LRDS-H (V2.0) standard ring light adopts high-quality LEDs and good heat dissipation design to provide sufficient, stable, and efficient lighting, which is available in models with various outer dimensions and irradiation angles.
Features:
- Adopts high-density LED array design.
- Provides models with various outer dimensions and irradiation angles.
- Adopts compact structure with good heat dissipation design.
- Provides diffuse plate to improve lighting uniformity.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-LRDS-H-200-90-R2 - Description

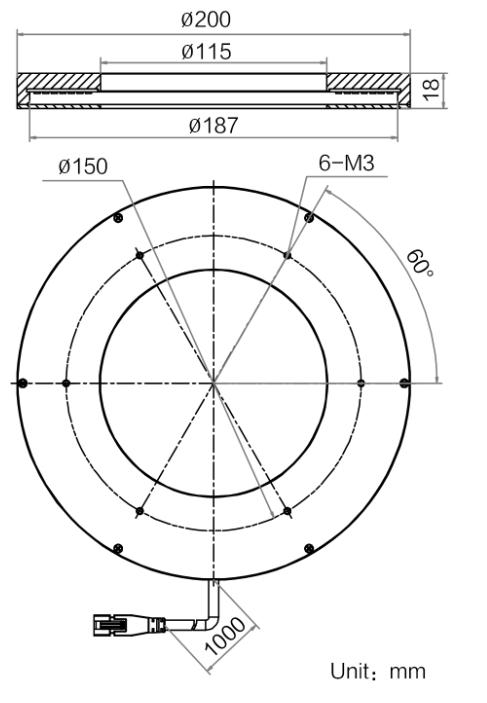

Dimension
MV-LRDS-H-200-90-R2 - Specifications
| Color | Red |
| LED Rows | 7 |
| Power Consumption | 33.1 W |
| Min Temperature | 0 °C |
| MaxTemperature | 40 °C |
| Connector type | SMR-03V-B |
MV-LRDS-H-200-90-R2 - Downloads
MV-LRDS-H-200-90-R2 Datasheet |
