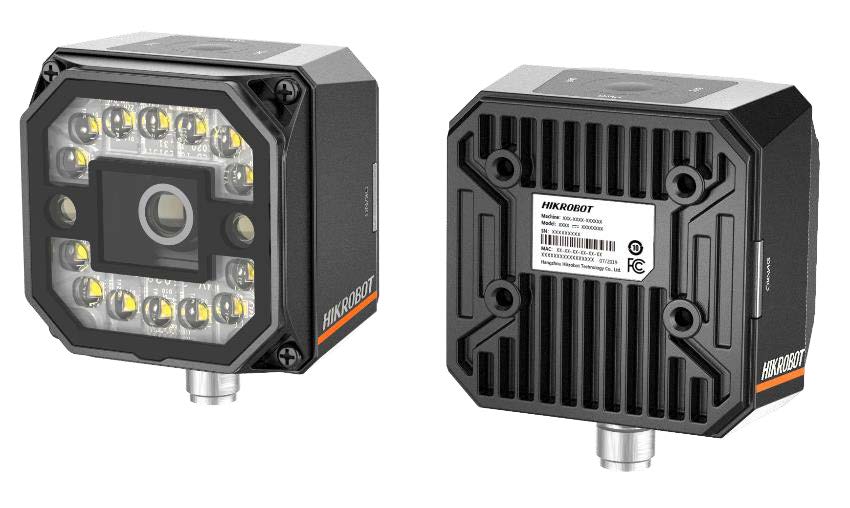

MV-ID3050PM, 4.2 MP Smart Code Reader
- Built-in deep learning algorithm for robust code recognition in challenging conditions.
- 4.2 MP CMOS global shutter sensor for capturing high-quality images.
- High-speed reading capability, processing up to 60 codes per second.
- Multiple IO interfaces for flexible input/output signal management.
- Integrated 14 LED lamps with polarized and non-polarized modes for enhanced lighting.
- Dual LED aiming lamps for easy installation and precise code targeting.
- Real-time status indicators for monitoring device status and reading results.
- Supports a wide range of communication protocols, including SmartSDK, TCP Client/Server, Serial, FTP, Profinet, and Ethernet/IP.
The MV-ID3050PM smart code reader is equipped with a 4.2 MP CMOS global shutter sensor that ensures high-quality image capture and accurate reading of various 1D, 2D, and stacked codes. Powered by Hikrobot's deep learning algorithm, it delivers superior performance in recognizing complex and damaged codes, making it ideal for demanding industrial environments.
With a reading speed of up to 60 codes per second and support for multiple focal lengths (8 mm, 12 mm, 16 mm, 25 mm), the MV-ID3050PM provides versatile functionality across a range of applications. It features 14 integrated LED lamps for optimal lighting, with both polarized and non-polarized modes available, and includes two LED aiming lamps for precise installation and code alignment. The device's robust IP67-rated enclosure ensures protection in harsh industrial settings, and its flexible connectivity options include SmartSDK, Modbus, Profinet, Ethernet/IP, and more.
The smart code reader supports working distances from 25 mm to 600 mm and delivers high pixel accuracy for both 1D and 2D codes, ensuring precise and reliable results. It operates within a temperature range of 0°C to 50°C, making it suitable for various industries, including consumer electronics, food and beverage, pharmaceutical, semiconductor, and automotive manufacturing.

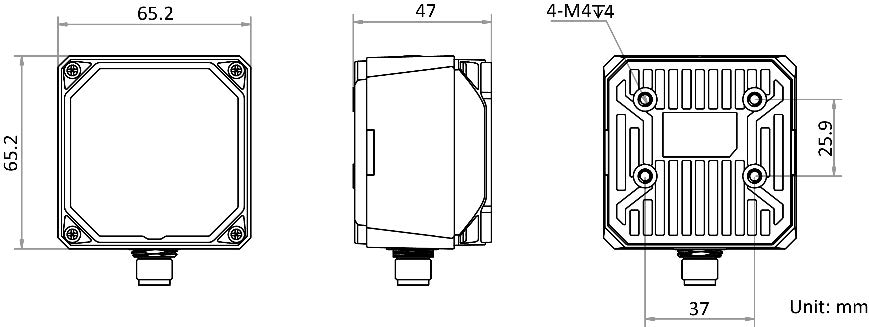

Dimension
| Resolution | 4.2 MP |
| Power Supply | 24 VDC |
| Data Interface | Fast Ethernet |
| Communication | Ethernet/IP |
| FTP | |
| Fins | |
| ModBus | |
| Profinet | |
| Serial | |
| SmartSDK | |
| SLMP | |
| TCP Client/Server | |
| 1-Dimensional Code | Code 11 |
| Code 39 | |
| Code 93 | |
| Code 128 | |
| CodaBar | |
| China Post | |
| EAN 8 | |
| EAN 13 | |
| Industrial 25 | |
| ITF 14 | |
| ITF 25 | |
| Matrix 25 | |
| MSI | |
| UPCA | |
| UPCE | |
| 2-Dimensional Code | Data Matrix |
| QR Code | |
| Mono/color | Mono |
| Certification | CE |
| KC | |
| FCC | |
| RoHS |
- Consumer electronics
- Food and beverage industry
- Pharmaceutical manufacturing
- Semiconductor industry
- Automotive industry
| MV-ID3050PM-08M-WBN | 8 mm focal length |
| MV-ID3050PM-12M-WBN | 12 mm focal length |
| MV-ID3050PM-16M-WBN | 16 mm focal length |
| MV-ID3050PM-25M-WBN | 25 mm focal length |
MV-ID3050PM Smart Code Reader_datasheet Datasheet |
