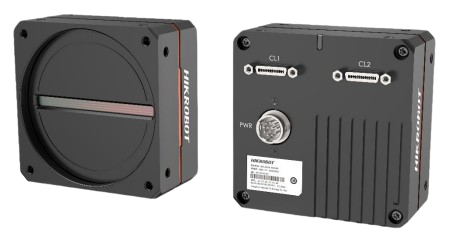

MV-CL082-92CM, Line Scan Camera
MV-CL082-92CM camera adopts CMOS sensor to provide high quality images and uses Camera Link interface to transmit images in real time, and its max. line rate reaches 100 kHz in full resolution.
Features:
- Supports multiple exposure and image acquisition modes.
- Adopts various ISP technologies and allows for manual adjustments for Gamma correction, FFC correction, LUT, black level, etc.
- Supports ROI to increase the line rate (maximum 200 kHz in 1-line mode) and bi-directional I/O wiring for flexible input/output settings.
- Compact design with flexible installation options.
- Compatible with the Camera Link protocol and the GenICam standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-CL082-92CM - Description

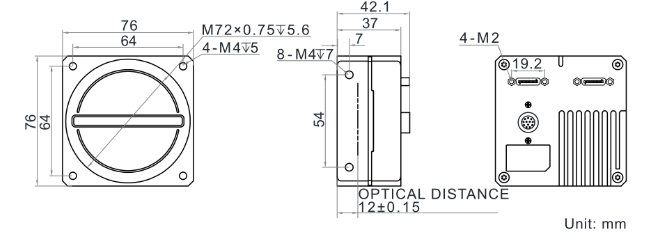

Dimension
MV-CL082-92CM - Specifications
| Resolution | 8K |
| Data interface | Camera Link |
| Power supply | 12 VDC - 24 VDC |
| Mono/Color | Mono |
| Lens mount | F-mount |
| M72 x 0.75 | |
| Ingress protection | IP 40 |
| Min Working Temperature | -20 °C |
| Max Working Temperature | 55 °C |
| Client software | MVS |
| Frame grabber | |
| Certification | CE |
| KC | |
| FCC | |
| RoHS2.0 |
MV-CL082-92CM - Downloads
MV-CL082-92CM Datasheet |
