MV-CL042-91CM-V2, Line Scan Camera
MV-CL042-91CM-V2 camera adopts CMOS sensor to provide high quality images and uses Camera Link interface to transmit images in real time. It adopts multiple ISP technologies.
Features:
- Adopts multiple ISP technologies and supports manual adjustments for Gamma correction, flat correction, LUT, and black level.
- Supports multiple exposure and image acquisition methods with a maximum line rate of 195 kHz.
- Compact design with flexible installation options.
- Supports bi-directional I/O wiring for flexible input/output settings.
- Compatible with the Camera Link protocol and the GenICam standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-CL042-91CM-V2 - Description

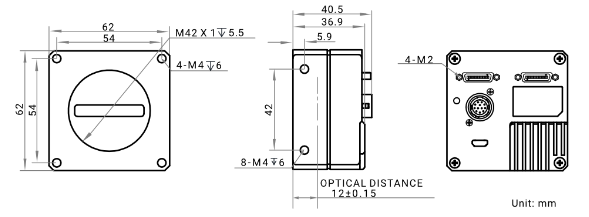

Dimension
MV-CL042-91CM-V2 - Specifications
| Resolution | 4K |
| Data interface | Camera Link |
| Power supply | 12 VDC - 24 VDC |
| Mono/Color | Mono |
| Lens mount | C-mount |
| F-mount | |
| M42 x 1.0 | |
| Ingress protection | IP 40 |
| Min Working Temperature | -20 °C |
| Max Working Temperature | 45 °C |
| Client software | MVS |
| Frame grabber |
MV-CL042-91CM-V2 - Downloads
MV-CL042-91CM-V2 Datasheet |
